BWS100 and BWS125 組裝知識（ BWS100 and bws125 Install knowledg，BWS100 and bws125 をインストール知識）
BWS100 2T
Cylinder+head kit (included
cylinder, P+R and gasket) 8流
Version 2 Crankshaft ( included oil
seals and bearings) NEW
Bearing 6205/ O:83
Model No
|
Description
|
|
BWS100-09056C
|
56+4200=127.58cc
l 56mm ceramic cylinder+ head
l 4200 crankshaft
|
l 56mm 陶缸+蓋
l 420條曲軸
|
BWS100-09058C
|
58+4200=136.85cc
l 58mm ceramic cylinder+ head
l 4200 crankshaft
|
l 58mm 陶缸+蓋
l 420條曲軸
|
BWS100-09061C
|
61+4200=151.38cc
l 61mm ceramic cylinder+ head
l 4200 crankshaft
|
l 61mm 陶缸+蓋
l 420條曲軸
|
Original Size:
52*47.6 (101cc)
Model No
|
Description
|
|
BWS-01052
|
BWS100
|
BWS100 52汽缸(101cc)
|
BWS-01052
|
BWS100
|
BWS100 52汽缸+蓋
|
BWS-01054
|
BWS100 54mm
cylinder + head
Need to
check have stock or not
|
BWS100 54汽缸+蓋
|
BWS-01055
|
BWS100 55mm
cylinder + head
Need to
check have stock or not
|
BWS100 55汽缸+蓋
|
BWS-01056
|
BWS100
|
BWS100 56汽缸+蓋(117cc)
|
BWS-01056C
|
BWS100 56mm
Ceramic cylinder + head
Need to go with TD 4200 crankshaft
|
BWS100 56陶瓷汽缸+蓋
|
BWS-01057
|
BWS100
Need to check have stock or not
|
BWS100 57汽缸+蓋(121cc)
|
BWS-01058
|
BWS100
Need to
check have stock or not
|
BWS100 58汽缸+蓋(125cc)
|
BWS-01058C
|
BWS100
58mm
Ceramic
cylinder + head
Need to go with TD 4200 crankshaft
|
BWS100 58陶瓷汽缸+蓋
|
BWS-01061C-1
|
BWS100
61mm
Ceramic
cylinder + head
Need to go with TD 4200 crankshaft
|
BWS100 61陶瓷汽缸+蓋
|
BWS-100 2stroke Non Exhaust hole
Model No
|
Description
|
|
BWS100-01052*
|
BWS
( Non Exhaust hole)
|
BWS100 52原廠汽缸
非8流
|
BWS100-01055*
|
BWS
( Non Exhaust hole)
|
BWS100 55mm汽缸
非8流
|
BWS100-01056*
|
BWS
(Non Exhaust hole)
|
BWS100 56mm汽缸
非8流
|
Model No
|
Description
|
|
BWS100-head56
|
BWS100
56 head
|
BWS100 56汽缸蓋
|
BWS100-head57
|
BWS100
57 head
|
BWS100 57汽缸蓋
|
BWS100-head58
|
BWS100
58 head
|
BWS100 58汽缸蓋
|
BWS100-head61
|
BWS100
61 head
|
BWS100 61汽缸蓋
|
Model No
|
Description
|
|
Model No
|
Description
|
|
BWS100-pump-M
|
BWS100 mechanical
water pump
Need to check the inventory.
|
BWS100機械式水幫浦
需查庫存
|
Model No
|
Description
|
|
BWS100-030
|
47.6mm STD
l BWS original crank shaft
l BWS oil seal*2
l
BWS
bearing*2
|
l BWS原廠曲軸47.6
l 油封2枚
l 培林2枚
|
BWS100-030520
|
52.8mm
l BWS original crank shaft
l BWS oil seal*2
l
BWS
bearing*2
Bearing 6205
Diameter is 82.8mm
NEED TO CHECK THE INVENTORY.
|
l BWS 520曲軸 52.8
l 油封2枚
l 培林2枚
外82.5
須查庫存
|
Version 2 Crankshaft ( included oil seals and bearings) NEW
Model No
|
Description
|
|
BWS100-030420-83
Version 2
|
51.8mm
l BWS 4200 microns stroke extended crank shaft – Forging
l BWS oil seal*2
l BWS bearing*2
Bearing 6205 / Diameter is 83mm
Fit our ceramic cylinder kit 56/58/61mm
|
l BWS 420條曲軸
l 油封2枚
l 培林2枚
外83
|
BWS100-030420-85
Version 2
|
51.8mm
l BWS 4200 microns stroke extended crank shaft – Forging
l BWS oil seal*2
l BWS bearing*2
Bearing 6205 / Diameter is 85mm
Fit our ceramic cylinder kit 56/58/61mm
NEED TO MODIFY THE CRANKCASE TO
85.5~85.7MM.
|
l BWS 420條曲軸
l 油封2枚
l 培林2枚
外85
須車曲軸室
|
Model No
|
Description
|
|
BWS100-pis52
|
BWS100 52mm Piston & Ring set
|
BWS100
52mm 活塞環組
|
BWS100-pis55
|
BWS100 55mm Piston & Ring set
|
BWS100
55mm 活塞環組
|
BWS100-pis56
|
BWS100 56mm Piston & Ring set
|
BWS100
56mm 活塞環組
|
BWS100-pis56c
|
BWS100 56mm Piston & Ring set
P+R ceramic use
|
BWS100
56mm 活塞環組
陶瓷缸專用
|
BWS100-pis57
|
BWS100 57mm Piston & Ring set
|
BWS100
57mm 活塞環組
|
BWS100-pis57.5
|
BWS100 57.5mm Piston & Ring set
|
BWS100
57.5mm 活塞環組
|
BWS100-pis58
|
BWS100 58mm Piston & Ring set
|
BWS100
58mm 活塞環組
|
BWS100-pis58c
|
BWS100 58mm Piston & Ring set
P+R ceramic use
|
BWS100
58mm 活塞環組
陶瓷缸專用
|
BWS100-pis58.5
|
BWS100 58.5mm Piston & Ring set
|
BWS100
58.5mm 活塞環組
|
BWS100-pis61c
|
BWS100 61mm Piston & Ring set
P+R ceramic use
|
BWS100
61mm 活塞環組
陶瓷缸專用
|
Model No
|
Description
|
|
BWS100-cgas58.5-1
|
Copper
gasket for 58 head
1mm
thickness
|
銅墊片 58用 厚1mm
|
BWS100-cgas58.5-0.5
|
Copper
gasket for 58 head
0.5mm
thickness
|
銅墊片 58用 厚0.5
|
BWS100-pgas58.5
|
Paper gasket
set for 58mm cylinder
0.8+0.5
(2/set)
|
紙墊片 58 用 0.8+0.5
|
No included fan and thermostat.
Model No
|
Description
|
|
BWS-100-08056-2
|
l
BWS 100
Only go with 47.6mm (STD) crank
l
head
l radiator
l hose water
l Water Pump
|
BWS100 56水冷汽缸套件組
l 56水冷汽缸
只配原廠曲軸47.6mm
l 汽缸蓋
l 散熱板
l 水管+縮帶
l 水幫浦
|
Model No
|
Description
|
|
BWS100-060-56
|
BWS 100
Only go with
47.6mm (STD) crank
|
BWS100 56水冷汽缸+蓋
只配原廠曲軸47.6mm
|
BWS100-060-gas56
|
BWS 100 water cooled cylinder gaskets set
56mm
|
BWS100 56水冷汽缸墊片組
|
Our radiators made of copper, more lightly and easy radiating.
Pump now have a coat to prevent dust.
And hose, from black
to blue, thicker and no easy get damage from the sun.
Model No
|
Description
|
|
RAD-28*13
|
Radiator ( new product)+cap
|
散熱水箱+接頭
|
TD-CAPI
|
Filler
cap -Made in Italy.
|
接頭
|
TD-12P
|
12V
water pump ( 8 liters/minute )
|
12V水幫浦
|
TD-FT
|
Fan +
Thermostat
Thermostat
will start the fan when the temperature up to about + - 80cc. (75~85cc)
|
風扇+感應器
|
TD-HSB
|
water hose-blue
Water hose 120cm*2=240cm
|
水管+縮帶
|
Model No
|
Description
|
|
BWS100-IM
|
BWS100 Intake Manifold
|
岐管BWS100大二閥
|
Keihin Made in Japan
Model No
|
Description
|
|
PWK 28
|
PWK28
carburetor
|
PWK28化油器
|
PWK33
|
PWK33
carburetor
|
PWK33化油器
|

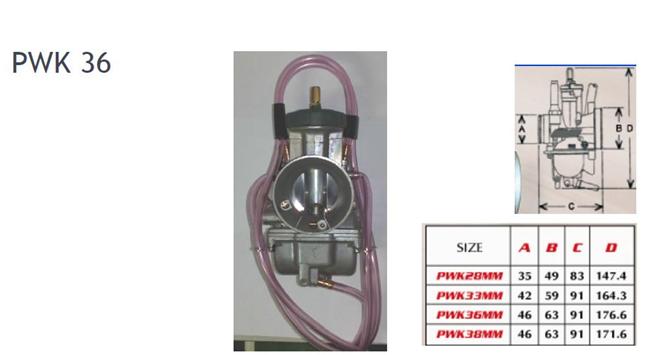

PWK36
|
PWK36
carburetor
|
PWK36化油器
|
PWK38
|
PWK38
carburetor
|
PWK38化油器
|
Model No
|
Description
|
|
PWK-TC
|
Throttle
cable
( Single
cable no oil pump)
0.23kg, in random color
|
PWK 油門線
|
Model No
|
Description
|
|
BWS100-muf-PG
|
BWS100 Exhaust Pipe
For BWS100cc
BWS 100 GP muffler
Fit 52-56mm
cylinder
NO DISCOUNT, NEED TO CHECK THE INVENTORY.
|
BWS 100 PG排氣管
小改 (風之集)
|
Model No
|
Description
|
|
BWS100-muf-GP1
|
BWS100 Exhaust Pipe
For BWS100cc
BWS 100 GP muffler
Fit 56mm
cylinder
HADE MADE
NO DISCOUNT, NEED TO CHECK THE INVENTORY.
|
BWS 100 GP排氣管
小改 (雞牌)
|
BWS100-muf-GP2
|
BWS100 Exhaust Pipe
For BWS100cc
BWS 100 GP muffler
Fit 57-61mm
cylinder
HAND MADE
OUT OF STOCK.
|
BWS 100 GP排氣管
大改(雞牌)
|
Model No
|
Description
|
|
BWS100-muf-V8
|
BWS 100 V8 muffler
Fit 56-57mm cylinder
HAND MADE
NO DISCOUNT
|
BWS 100 V8排氣管
|
Model No
|
Description
|
|
BWS100-gas-mufV8
|
gasket for V8 muffler
|
V8排氣管墊片
|
del No
|
Description
| |
BWS100-muf
|
BWS 100 muffler
Fit 56-61mm cylinder
HAND MADE
NO DISCOUNT
|
BWS 100 反折管
(適用56mm~61mm 汽缸) |
------------------------------------------------------------------------------------------------------------------------------------------------------------------
BWS 125=ZUMA125

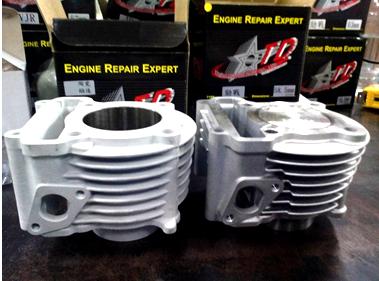

BWS.ZUMA Cylinder kit
BWS125
Original
Size: 52.4x 57.9 (123cc) / Big bore Size: 52.4mm~69mm
Cylinder kit is
included cylinder body, piston, rings, pin, gaskets and G-ring.
Item number
|
Description
|
|
ZUMA-01052.4
|
BWS 125
52.4mm
casting cylinder,
With
casting piston
Height
72.7mm
|
勁戰=BWS 125=
ZUMA 125
52.4mm 鑄造汽缸
+鑄造活塞
高72.7
|
ZUMA-01052.4f
|
BWS 125
52.4mm
casting cylinder,
With forged
piston
Height 72.7mm
|
勁戰=BWS 125=
ZUMA 125
52.4mm 鑄造汽缸
+鍛造活塞
高72.7
|
ZUMA-01052.4c
|
BWS 125
52.4mm ceramic
cylinder,
With
casting piston
Height
72.7mm
|
勁戰=BWS 125=
ZUMA 125
52.4mm 陶瓷汽缸
+鑄造活塞
高72.7
|
ZUMA-01052.4cf
|
BWS 125
52.4mm ceramic cylinder,
With forged
piston
Height
72.7mm
|
勁戰=BWS 125=
ZUMA 125
52.4mm 陶瓷汽缸
+鍛造活塞
高72.7
|
Item number
|
Description
|
|
ZUMA-01058.5
|
BWS 125
58.5mm
casting cylinder,
With
casting piston
Height
72.7mm
|
勁戰=BWS 125=
ZUMA 125
58.5mm 鑄造汽缸
+鑄造活塞
高72.7
|
ZUMA-01058.5f
|
BWS 125
58.5mm
casting cylinder,
With forged
piston
Height
72.7mm
|
勁戰=BWS 125=
ZUMA 125
58.5mm 鑄造汽缸
+鍛造活塞
高72.7
|
ZUMA-01058.5c
|
BWS 125
58.5mm ceramic
cylinder,
With
casting piston
Height
72.7mm
|
勁戰=BWS 125=
ZUMA 125
58.5mm 陶瓷汽缸
+鑄造活塞
高72.7
|
ZUMA-01058.5cf
|
BWS 125
58.5mm ceramic cylinder,
With forged
piston
Height
72.7mm
|
勁戰=BWS 125=
ZUMA 125
58.5mm 陶瓷汽缸
+鍛造活塞
高72.7
|
Item number
|
Description
|
|
ZUMA-01059
|
BWS 125
59mm
casting cylinder,
With
casting piston
Height
72.7mm
|
勁戰=BWS 125=
ZUMA 125
59mm 鑄造汽缸
+鑄造活塞
高72.7
|
ZUMA-01059f
|
BWS 125
59mm
casting cylinder,
With forged
piston
Height
72.7mm
|
勁戰=BWS 125=
ZUMA 125
59mm 鑄造汽缸
+鍛造活塞
高72.7
|
ZUMA-01059c
|
BWS 125
59mm ceramic
cylinder,
With
casting piston
Height
72.7mm
|
勁戰=BWS 125=
ZUMA 125
59mm 陶瓷汽缸
+鑄造活塞
高72.7
|
ZUMA-01059cf
|
BWS 125
59mm ceramic cylinder,
With forged
piston
Height
72.7mm
|
勁戰=BWS 125=
ZUMA 125
59mm 陶瓷汽缸
+鍛造活塞
高72.7
|
58.5mm cylinder
With casting piston
|
When go for 3.5mm crankshaft
(short piston problem)
|
x
|
New chain or used chain
|
58.5mm cylinder
With forged piston
|
Need aluminum gasket
|
Used chain
|
|
59mm cylinder
With casting cylinder
|
Need aluminum gasket
|
Used chain
|
|
59mm cylinder
With forged piston
|
Need aluminum gasket
|
Used chain
|
Item number
|
Description
|
|
ZUMA-01061
|
BWS 125
61mm
casting cylinder,
With
casting piston
Height
73.2mm
|
勁戰=BWS 125=
ZUMA 125
61mm 鑄造汽缸
+鑄造活塞
高73.2
|
ZUMA-01061f
|
BWS 125
61mm
casting cylinder,
With forged
piston
Height
73.2mm
|
勁戰=BWS 125=
ZUMA 125
61mm 鑄造汽缸
+鍛造活塞
高73.2
|
63.5mm (height 73.2)
can go for +3.5
Or +8.2 crankshaft
(need 6mm aluminum gasket)
Item number
|
Description
|
|
ZUMA-01063.5
|
BWS 125
63.5mm
casting cylinder,
With
casting piston
Height
73.2mm
Go for 3.5 cranks, no need AL gasket.
Go for above 8.2 cranks, need AL 6mm.
|
勁戰=BWS 125=
ZUMA 125
63.5mm 鑄造汽缸
+鑄造活塞
高73.2
配350條不用鋁片
配超820條需鋁6mm
|
ZUMA-01063.5f
|
BWS 125
63.5mm
casting cylinder,
With forged
piston
Height
73.2mm
Go for 3.5 cranks, no need AL gasket.
Go for above 8.2 cranks, need AL 6mm.
|
勁戰=BWS 125=
ZUMA 125
63.5mm 鑄造汽缸
+鍛造活塞
高73.2
配350條不用鋁片
配超820條需鋁6mm
|
ZUMA-01063.5c
|
BWS 125
63.5mm ceramic
cylinder,
With
casting piston
Height
73.2mm
Go for 3.5 cranks, no need AL gasket.
Go for above 8.2 cranks, need AL 6mm.
|
勁戰=BWS 125=
ZUMA 125
63.5mm 陶瓷汽缸
+鑄造活塞
高73.2
配350條不用鋁片
配超820條需鋁6mm
|
ZUMA-01063.5cf
|
BWS 125
63.5mm ceramic cylinder,
With forged
piston
Height
73.2mm
Go for 3.5 cranks, no need AL gasket.
Go for above 8.2 cranks, need AL 6mm.
|
勁戰=BWS 125=
ZUMA 125
63.5mm 陶瓷汽缸
+鍛造活塞
高73.2
配350條不用鋁片
配超820條需鋁6mm
|
Height 80mm, go for
+8.2~+10.0 crankshaft
Item number
|
Description
|
|
ZUMA-01066c-80
|
BWS 125
66mm ceramic
cylinder,
With
casting piston
Height 80mm
|
勁戰=BWS 125=
ZUMA 125
66mm 陶瓷汽缸
+鑄造活塞
高80
|
ZUMA-01066cf-80
|
BWS 125
66mm ceramic cylinder,
With forged
piston
Height 80mm
|
勁戰=BWS 125=
ZUMA 125
66mm 陶瓷汽缸
+鍛造活塞
高80
|
Item number
|
Description
|
|
ZUMA-01067-80
|
BWS 125
67mm casting cylinder,
With
casting piston
Height 80mm
|
勁戰=BWS 125=
ZUMA 125
67mm 鑄造汽缸
+鑄造活塞
高80
|
ZUMA-01067f-80
|
BWS 125
67mm casting cylinder,
With forged piston
Height 80mm
|
勁戰=BWS 125=
ZUMA 125
67mm 鑄造汽缸
+鍛造活塞
高80
|
ZUMA-01067c-80
|
BWS 125
67mm ceramic
cylinder,
With
casting piston
Height 80mm
|
勁戰=BWS 125=
ZUMA 125
67mm 陶瓷汽缸
+鑄造活塞
高80
|
ZUMA-01067cf-80
|
BWS 125
67mm ceramic cylinder,
With forged
piston
Height 80mm
|
勁戰=BWS 125=
ZUMA 125
67mm 陶瓷汽缸
+鍛造活塞
高80
|
CYGNUS Cylinder locator pin
Model No
|
Description
|
|
BWS-pin1014
|
Locator pin 10*14mm (4/set)
All TD cylinders fit this one.
|
勁戰 定位銷 10*14mm (4個一組)
|
BWS-pin1020
|
Locator pin 10*20mm (4/set)
|
勁戰 定位銷 10*20mm (4個一組)
|
Item number
|
Description
|
|
ZUMA-01069f-80-1
|
BWS 125
69mm casting cylinder,
With superior forged piston
Height 80mm
OD:71.5mm
|
勁戰=BWS 125=
ZUMA 125
69mm 鑄造汽缸
+進口鍛造活塞
高80
外71.5
|
ZUMA-01069f-80-2
|
BWS 125
69mm casting cylinder,
With superior forged piston
Height 80mm
OD: 74.5mm
|
勁戰=BWS 125=
ZUMA 125
69mm 鑄造汽缸
+進口鍛造活塞
高80
外74.5
|
ZUMA-01069cf-80-1
|
BWS 125
69mm ceramic cylinder,
With superior forged
piston
Height 80mm
OD:71.5mm
|
勁戰=BWS 125=
ZUMA 125
69mm 陶瓷汽缸
+進口鍛造活塞
高80
外71.5
|
ZUMA-01069cf-80-2
|
BWS 125
69mm ceramic cylinder,
With superior forged
piston
Height 80mm
OD: 76mm
|
勁戰=BWS 125=
ZUMA 125
69mm 陶瓷汽缸
+進口鍛造活塞
高80
外76
|
59mm
cylinders don’t need to cut case.
CASE STD open to 62mm, biggest can cut to 72mm (oil way won’t broke)
61mm
cylinders (OD: 65mm) start to cut case.
69mm
cylinder
|
OD:
71.5mm
|
Just
cut case
|
OD:
76mm
|
1. Cut case
2. Make up
case
|
BWS.ZUMA Cylinder head& Rocker arms
Model No
|
Description
|
|
ZUMA-020-19/17-STD
|
BWS 125 head 19/17 STD
Need to go for arm 23mm
|
BWS125 加大汽門 原廠 19/17
|
ZUMA-020-22/19
|
BWS 125 head 22/19
Need to go for arm 23mm
|
BWS125 加大汽門 22/19
|
ZUMA-020-23/21
|
BWS 125 head 23/21
Need to go for arm 23mm
|
BWS125 加大汽門 23/21
|
ZUMA-020-24/22
|
BWS 125 head 24/22
Need to go for arm 26mm
|
BWS125 加大汽門 24/22
|
NEW
ZUMA-020-25/23-TD
|
BWS 125 head 25/23 (TD LOGO)
Need to go for arm 26mm
|
BWS125 加大汽門 25/23
|
NEW
ZUMA-020-26/23-TD
|
BWS 125 head 26/23 (TD LOGO)
Need to go for arm 26mm
|
BWS125 加大汽門 26/23
|
ZUMA-020-27/24
|
BWS 125 head 27/24
Need to go for arm 26mm
|
BWS125 加大汽門 27/24
|
ZUMA-020-27/25
|
BWS 125 head 27/25
Need to go for arm 26mm
|
BWS125 加大汽門 27/25
|
Model No
|
Description
|
US Price
|
ZUMA-arm23
|
BWS 125 STD strengthen Rocker 23mm
|
勁戰搖臂-原廠
|
ZUMA-arm26
|
BWS
125 reinforced strengthen Rocker 26mm
|
勁戰搖臂-外移
|
BWS.ZUMA Camshaft
Model No
|
Description
|
US Price
|
ZUMA-cam-t1
|
BWS
125 camshaft
T1 (upgraded)
|
BWS125 T1凸輪軸
|
ZUMA- cam-t2
|
BWS
125 camshaft
T2 (upgraded)
|
BWS125T2凸輪軸
|
ZUMA- cam-t3
|
BWS
125 camshaft
T3 (upgraded)
|
BWS125T3凸輪軸
|
ZUMA- cam-t5
|
BWS
125 camshaft
T5 (upgraded)
|
BWS125T5凸輪軸
|
ZUMA- cam-t6
|
BWS
125 camshaft
T6 (upgraded)
|
BWS125T6凸輪軸
|
ZUMA- cam-king
|
BWS
125 camshaft
king (upgraded)
|
BWS125KING凸輪軸
|
T1
|
Power at beginning and middle
(起中)
Fit
150-180cc
|
IN
|
21.2/26.3
|
LIFT
|
5.1
|
EX
|
21.3/26.4
|
5.1
|
|||
T2
|
Power at the last (big upgraded)
(中尾/大改)
Fit more
200cc
|
IN
|
19.5/26.0
|
LIFT
|
6.5
|
EX
|
19.7/26.25
|
6.55
|
|||
T3
|
Power at the last (fit
(中尾/適合67汽缸)
Fit
180-200cc
|
IN
|
19.75/25.4
|
LIFT
|
5.65
|
EX
|
19.8/25.85
|
6.05
|
|||
T5
|
Power at the last(中尾)
Fit more
200cc
|
IN
|
18.05/24.2
|
LIFT
|
6.15
|
EX
|
18.0/24.15
|
6.15
|
|||
T6
|
Power at the last (small upgraded)
(中尾/小改)
Fit180-200cc
|
IN
|
20.0/25.25
|
LIFT
|
5.25
|
EX
|
20.55/25.85
|
5.3
|
|||
KING
|
Power at the last (big noise)
(中尾/聲音大)
Fit more
200cc
|
IN
|
21.7/26.85
|
LIFT
|
5.15
|
EX
|
21.75/26.9
|
5.15
|
BWS.ZUMA Crankshaft
+8.2~+10.0
crankshaft go for cylinder height 80mm
(Cylinder height 80 goes for above
+8.2 no need 6mm aluminum gasket)
(Cylinder 63.5mm goes for above +8.2
MUST need 6mm AL
gasket)
Model No
|
Description
|
|
ZUMA-030-STD
|
BWS125 STD crankshaft (57.9mm)
No studs, chain and aluminum gasket.
|
BWS125原廠曲軸only
無內鍊+螺絲柱
|
ZUMA-030250
|
BWS125 2500 microns stroke extended crankshaft (
No studs,
chain and aluminum gasket.
|
BWS125 250條曲軸only
無內鍊+螺絲柱
|
ZUMA-030350
|
BWS125 3500 microns stroke extended crankshaft (
No studs,
chain and aluminum gasket.
|
BWS125 350條曲軸only
無內鍊+螺絲柱
|
NEW
ZUMA-030820-c
|
BWS125 8200 microns stroke extended crankshaft (66.1mm)
Included chain, studs 236*4+96 link
and aluminum gasket 6mm
- when
cylinder 73.2mm, but cylinder liner will be short, we don’t suggest this
|
BWS125 820條曲軸
含內鍊+螺絲柱+鋁墊片6mm
|
NEW
ZUMA-030820-b
|
BWS125 8200 microns stroke extended crankshaft (66.1mm)
Included chain, studs 236*4+96 link
|
BWS125 820條曲軸
含內鍊+螺絲柱
|
NEW
ZUMA-030820-a
|
BWS125 8200 microns stroke extended crankshaft (66.1mm)
No studs,
chain and aluminum gasket.
|
BWS125 820條曲軸only
無內鍊+螺絲柱
|
ZUMA-0301000-c
|
BWS125 10000 microns stroke extended crankshaft (
Included chain, studs 236*4+96 link
and aluminum gasket 6mm
- when
cylinder 73.2mm, but cylinder liner will be short, we don’t suggest this
|
BWS125 1000曲軸
含內鍊+螺絲柱+鋁墊片6mm
|
ZUMA-0301000-b
|
BWS125 10000 microns stroke extended crankshaft (
Included
chain, studs 236*4+96 link
|
BWS125 1000曲軸
含內鍊+螺絲柱
|
ZUMA-0301000-a
|
BWS125 10000 microns stroke extended crankshaft (
No studs,
chain and aluminum gasket.
|
BWS125 1000曲軸only
無內鍊+螺絲柱
|
BWS.ZUMA matching
Head
|
arm
|
cylinder
|
crankshaft
|
studs
|
chain
|
camshaft
|
|||
19/17 STD
|
23
|
72.7: 52.4
|
57.9 STD
|
225*4
|
94
|
STD
|
|||
22/19
|
23
|
72.7: 58.5
72.7: 59
|
57.9 STD
60.4 (+2.5)
61.4 (+3.5)
|
225*4
|
94
|
T1, T6, T3
|
|||
23/21
|
26
|
73.2 H: 61
|
60.4 (+2.5)
61.4 (+3.5)
|
225*4
|
94
|
T1, T6, T3
|
|||
24/22
|
26
|
73.2 H:
63.5
|
61.4 (+3.5)
|
225*4
|
94
|
T1, T6, T3
|
|||
73.2 H: 63.5
Need AL 6mm.
|
66.1 (+8.2)
|
236*4
|
96
|
T1, T6, T3
|
|||||
25/23 TD
|
26
|
80 H: 66, 67
|
66.1 (+8.2)
67.9 (+10.0)
|
236*4
236*4
|
96
96
|
T2
|
|||
26/23 TD
|
26
|
80 H: 66, 67, 69
|
66.1 (+8.2)
67.9 (+10.0)
|
236*4
|
96
|
T2
|
|||
27/24
|
26
|
80 H: 66, 67, 69
|
66.1 (+8.2)
67.9 (+10.0)
|
236*4
|
96
|
T2
|
|||
27/25
|
23
|
80 H: 67, 69
|
66.1 (+8.2)
67.9 (+10.0)
|
236*4
|
96
|
T2
|
|||
BWS.ZUMA Combo
Model
No
|
Description
|
|
ZUMA-090-165cf
|
165cc combo
58.5mm ceramic cylinder with forged
piston
(72.7
height)
+3.5
crankshaft
+22/19
head
+23mm
arm
+T1
camshaft
|
165cc套件
58.5陶瓷+鍛造缸(72.7高)
+350條
+22/19蓋
+23搖臂
+T1凸輪軸
|
ZUMA-090-179
|
179cc combo
61mm
cylinder (73.2 height)
+3.5
crankshaft
+23/21
head
+26mm
arm
+T1
camshaft
|
179cc套件
61缸(73.2高)
+350條
+23/21蓋
+26搖臂-外移
+T1凸輪軸
|
ZUMA-090-194c
|
194cc combo
63.5mm ceramic cylinder (73.2 height)
+3.5
crankshaft
+24/22
head
+26mm
arm
+T3
camshaft
|
194cc套件
63.5陶瓷缸(73.2高)
+350條
+24/22蓋
+26搖臂-外移
+T3凸輪軸
|
ZUMA-090-209c
|
209cc combo
63.5mm ceramic cylinder (73.2 height)
+8.2 crankshaft
+24/22
head
+26mm
arm
+6mm aluminum gasket
+T3
camshaft
|
209cc套件
63.5陶瓷缸(73.2高)
+820條
+24/22蓋
+26搖臂-外移
+6mm鋁墊片
+T3凸輪軸
|
ZUMA-090-226cf
|
226cc combo
66mm ceramic cylinder with forged
piston
(80 height)
+8.2 crankshaft
+26/23
head (TD LOGO)
+26mm
arm
+T2
camshaft
|
226cc套件
66陶瓷+鍛造缸(80高)
+820條
+26/23蓋(TD LOGO)
+26搖臂-外移
+T2凸輪軸
|
ZUMA-090-233cf
|
233cc combo
67mm ceramic cylinder with forged
piston
(80
height)
+8.2
crankshaft
+27/24
head
+26mm
arm
+T2
camshaft
|
233cc套件
67陶瓷+鍛造缸(80高)
+820條
+27/24蓋
+26搖臂-外移
+T2凸輪軸
|
ZUMA-090-247cf
|
247cc combo
69mm ceramic cylinder with superior
forged piston
(80
height)
+8.2
crankshaft
+27/25
head
+23mm arm
+T2
camshaft
|
247cc套件
69陶瓷+進口鍛造缸(80高)
+820條
+27/24蓋
+23搖臂
+T2凸輪軸
|
BWS.ZUMA Oil cooling
Model
No
|
Description
|
|
ZUMA-050
|
BWS125 oil Cooling kit
|
勁戰油冷組
|
ZUMA-050-non
|
BWS125 oil Cooling plate
|
勁戰油盤
|
ZUMA-050-SCREW
|
BWS 125 Screw set
( for oil cooler case use, 2/set )
IN RANDOM COLORS
|
勁戰油冷接頭
(2支一組)
|
ZUMA-050-oring
|
BWS
125 O-ring of oil cooling
|
勁戰油冷電盤油圈
|
ZUMA-050-gas
|
BWS
125 oil pump cover gasket of oil cooling
|
勁戰油冷電盤墊片
|
BWS.ZUMA Ventilation
Model
No
|
Description
|
|
ZUMA-V-B
|
BWS125 ventilation kit-black
|
勁戰125散熱蓋-黑
|
ZUMA-V-O
|
BWS125 ventilation kit-orange
|
勁戰125散熱蓋-橘
|
ZUMA-V-S
|
BWS125 ventilation kit-silver
|
勁戰125散熱蓋-銀
|
BWS.ZUMA Titanium retainer& spring
Model
No
|
Description
|
|
ZUMA-ABVC
|
BWS125 titanium valve retainer (4/set)
|
勁戰125鈦帽
|
ZUMA-sprB
|
BWS125 upgraded spring 4/set
|
勁戰改裝彈簧 B
|
ZUMA-sprA
|
BWS125 upgraded spring 4/set
More stronger
|
勁戰強化彈簧 A
|
BWS.ZUMA Starter motor
Model
No
|
Description
|
|
ZUMA-MP001
|
BWS125 Maximum Torque Power motor
|
勁戰起動馬達
|
ZUMA-MP002
|
BWS125 Maximum Torque Power motor
(big upgrade) 200cc
|
勁戰起動馬達(大改)
|
BWS.ZUMA Gear
Model No
|
Description
|
|
ZUMA-gear1339
|
BWS125 gear for accelerate ( 13 * 39 ) (upgraded)
|
BWS125加速齒輪13*39
|
ZUMA-gear1438
|
BWS125 gear for accelerate ( 14 * 38 ) (upgraded)
|
BWS125加速齒輪14*38
|
BWS.ZUMA Exhaust pipe
Model
No
|
Description
|
|
ZUMA-ep69
|
BWS125 Exhaust Pipe For 69mm
|
BWS排氣管 / 適合69汽缸
|
ZUMA -ep67
|
BWS125 Exhaust Pipe For
|
BWS排氣管 / 適合67汽缸
|
ZUMA -ep63
|
BWS125 Exhaust Pipe For 63mm
|
BWS排氣管 / 適合63汽缸
|
ZUMA -ep58.5
|
BWS125 Exhaust Pipe For 58.5mm
|
BWS排氣管 / 適合58.5汽
|
ZUMA -ep58.5-b
|
BWS125 Exhaust Pipe For 58.5mm
(Front normal color, rear black)
|
BWS排氣管 / 適合58.5汽
(前段-白鐵/後段-一般鐵拷黑)
|
BWS.ZUMA Water cooled
Model No
|
Description
|
|
ZUMA-06063.5
|
BWS water cooled 63.5mm casting
cylinder with casting piston
|
勁戰
水冷63.5汽缸
|
ZUMA-06063.5f
|
BWS water cooled 63.5mm casting
cylinder with
forged piston
|
勁戰
水冷63.5汽缸+鍛造活塞
|
ZUMA-06065
|
BWS water cooled 65mm casting cylinder
with casting piston
|
勁戰
水冷65汽缸
|
ZUMA-06065f
|
BWS water cooled 65mm casting cylinder
with forged
piston
|
勁戰
水冷65汽缸+鍛造活塞
|
Model No
|
Description
|
|
ZUMA-090-66wc
|
BWS Oversize water cooler Cylinder Kit
: 210cc
l water
cooler
l High
angle Rolling the round Camshaft
l water
cooler cylinder head 4V 24/22
l
Rolling the round strengthen Rocker
Water cooled cylinder and
head
fit BWS 3500 crankshaft (
|
勁戰4V水冷汽缸組(210cc)
水冷缸、水冷蓋
l 水冷66陶瓷汽缸
l 滾輪式高角度凸輪軸
l 水冷加大汽門24/22
l 滾輪式強化搖臂
適合350條曲軸
|
ZUMA-06066c
|
BWS water cooled 66mm ceramic cylinder
with casting piston
|
勁戰
水冷66陶瓷汽缸
|
ZUMA-06066cf
|
BWS water cooled 66mm ceramic cylinder
with forged piston
|
勁戰
水冷66陶瓷汽缸+鍛造活塞
|
BWS.ZUMA Piston& Rings
Model No
|
Description
|
|
ZUMA-pis52.4
|
BWS125
52.4mm P+R
|
勁戰52.4 活塞環組
|
ZUMA-pis52.4f
|
BWS125
52.4mm P+R forged
|
勁戰52.4 鍛造活塞環組
|
ZUMA-pis58.5
|
BWS125
58.5mm P+R
|
勁戰58.5活塞環組
|
ZUMA-pis58.5f
|
BWS125
52.4mm P+R forged
|
勁戰58.5鍛造活塞環組
|
ZUMA-pis59
|
BWS125
59mm P+R
|
勁戰59 活塞環組
|
ZUMA-pis59f
|
BWS125
59mm P+R forged
|
勁戰59 鍛造活塞環組
|
ZUMA-pis61
|
BWS125
61mm P+R
|
勁戰61 活塞環組
|
ZUMA-pis61f
|
BWS125
61mm P+R forged
|
勁戰61 鍛造活塞環組
|
ZUMA-pis63.5
|
BWS125
63.5mm P+R
|
勁戰63.5 活塞環組
|
ZUMA-pis63.5f
|
BWS125
63.5mm P+R forged
|
勁戰63.5 鍛造活塞環組
|
ZUMA-pis66f-80
|
BWS125
66mm P+R forged
For 80 height cylinder
|
勁戰66鍛造活塞環組
80長用
|
ZUMA-pis67f-80
|
BWS125
67mm P+R forged
For 80 height cylinder
|
勁戰67鍛造活塞環組
80長用
|
ZUMA-pis69f-80
|
BWS125
69mm P+R
forged superior
For 80 height cylinder
|
勁戰69進口鍛造活塞環組
80長用
|
BWS.ZUMA Ring set
Model No
|
Description
|
|
ZUMA-ring52.4
|
BWS125
52.4mm ring set
1.0+1.0+2.0
|
勁戰 52.4活塞環1.0
|
ZUMA-ring58.5-1
|
BWS125
58.5mm ring set
0.8+0.8+2.0
|
勁戰 58.5活塞環0.8
|
ZUMA-ring58.5-2
|
BWS125
58.5mm ring set
1.0+1.0+2.0
|
勁戰 58.5活塞環1.0
|
ZUMA-ring59-1
|
BWS125
59mm ring set
0.8+0.8+2.0
|
勁戰 59活塞環0.8
|
ZUMA-ring59-2
|
BWS125
59mm ring set
1.0+1.0+2.0
|
勁戰 59活塞環1.0
|
ZUMA-ring61
|
BWS125
61mm ring set
1.0+1.0+2.0
|
勁戰 61活塞環1.0
|
ZUMA-ring63.5
|
BWS125
63.5mm ring set
0.8+0.8+2.0
|
勁戰 63.5活塞環0.8
|
ZUMA-ring66
|
BWS125
66mm ring set
0.8+0.8+2.0
|
勁戰 66活塞環0.8
|
ZUMA-ring67
|
BWS125
67mm ring set
0.8+0.8+2.0
|
勁戰 67活塞環0.8
|
ZUMA-ring69
|
BWS125
69mm ring set
0.8+0.8+2.0
|
勁戰 69活塞環0.8
|
BWS.ZUMA Gasket set
Model No
|
Description
|
|
ZUMA-gas52.4
|
BWS125
STD 52.4mm gasket set
Steel+0.5
|
勁戰52.4 墊片半組
|
ZUMA-gas58.5
|
BWS125
58.5mm gasket set
Steel+0.5+0.8
|
勁戰58.5 墊片半組
|
ZUMA-gas59
|
BWS125
59mm gasket set
Steel+0.5+0.8
|
勁戰59 墊片半組
|
ZUMA-gas61
|
BWS125
61mm gasket set
Steel+0.5+0.8
|
勁戰61 墊片半組
|
ZUMA-gas63.5
|
BWS125
63.5mm gasket set
Steel+0.5+0.8
|
勁戰63.5 墊片半組
|
ZUMA-gas66
|
BWS125
66mm gasket set
Steel+0.5+0.8
|
勁戰66 墊片半組
|
ZUMA-gas67
|
BWS125
67mm gasket set
Steel+0.5+0.8
|
勁戰67 墊片半組
|
ZUMA-gas69
|
BWS125
69mm gasket set
Steel+0.5+0.8
|
勁戰69 墊片半組
|
BWS.ZUMA Studs& chain
Model No
|
Description
|
|
ZUMA-stud225
|
BWS Stud
225mm (4/set)
|
勁戰螺絲柱4支225
|
ZUMA -stud236
|
BWS Stud
236mm (4/set)
|
勁戰螺絲柱4支236
|
ZUMA -CHAIN-94
|
BWS
chain 94
|
勁戰94目內鏈
|
ZUMA -CHAIN-96
|
BWS chain 96
|
勁戰96目內鏈
|
ZUMA -CHAIN-106
|
BWS chain 106
|
勁戰106目內鏈
|
CYGNUS Bearing
Model No
|
Description
|
|
ZUMA-bearing62
|
BWS 125 bearing
62mm
Pulley side 6305
|
BWS 125 62mm 曲軸培林
6305
|
ZUMA-bearing
56
|
BWS 125 mm
bearing 56mm
BOLT (CO4A86)
|
BWS 125 56mm 曲軸培林
C8-8
|
CYGNUS Crankshaft Seal
Model No
|
Description
|
|
ZUMA-CSS
|
BWS crank seal set (2/set)
|
BWS 125 曲軸油封(左右)
HTCL 22 32 7 2 KOK
HTCR 19 30 5 6463 6
KOK
|
CYGNUS Transmission seal
Model No
|
Description
|
|
ZUMA-TSS
|
BWS125 transmission seal (2/set)
|
BWS 125 傳動油封(左右)
PIANIK 6519 HTC 26 48 7R 7
PIA TC 22 39 6
6527 23
|
BWS.ZUMA Nut
for head
Model
No
|
Description
|
|
ZUMA-LN22.5
|
BWS125
Long nut 22.5mm for head (4/set)
|
勁戰缸蓋加長螺帽(附華司)
|
BWS.ZUMA aluminum gasket
Model
No
|
Description
|
|
ZUMA -agas63-0.3
|
BWS125
steel 63mm gasket
Thickness:
0.3mm
Need to check the inventory.
|
勁戰63鋁墊片0.3mm
|
ZUMA -agas63-0.5
|
BWS125
steel 63mm gasket
Thickness:
0.5mm
Need to check the inventory.
|
勁戰63鋁墊片0.5mm
|
ZUMA - agas63-0.8
|
BWS125
steel 63mm gasket
Thickness:
0.8mm
Need to check the inventory.
|
勁戰63鋁墊片0.8mm
|
ZUMA - agas63-1.0
|
BWS125
steel 63mm gasket
Thickness:
1.0mm
Need to check the inventory.
|
勁戰63鋁墊片1mm
|
ZUMA -agas67-0.3
|
BWS125
steel 67mm gasket
Thickness:
0.3mm
Need to check the inventory.
|
勁戰67鋁墊片0.3mm
|
ZUMA -agas67-0.5
|
BWS125
steel 67mm gasket
Thickness:
0.5mm
Need to check the inventory.
|
勁戰67鋁墊片0.5mm
|
ZUMA - agas67-0.8
|
BWS125
steel 67mm gasket
Thickness:
0.8mm
Need to check the inventory.
|
勁戰67鋁墊片0.8mm
|
ZUMA - agas67-1.0
|
BWS125
steel 67mm gasket
Thickness:
1.0mm
Need to check the inventory.
|
勁戰67鋁墊片1mm
|
ZUMA -agas70.5-6
|
BWS125 aluminum
70.5mm gasket
Thickness:
6mm
Need to check the inventory.
|
勁戰70.5鋁墊片6mm
|
ZUMA -agas75-6
|
BWS125 aluminum
75mm gasket
Thickness:
6mm
Need to check the inventory.
|
勁戰75鋁墊片6mm
|
BWS.ZUMA Injector 58.5 cylinder
Model No
|
Description
|
US Price
|
ZUMA-injc58.5
|
ZUMA125
injector 145cc
For
58.5 cylinder+3.5crankshaft
|
勁戰125 噴油嘴145cc
配58.5缸+350條
|
BWS.ZUMA Carburetor&
throttle
Model
No
|
Description
|
|
ZUMA- Thr28
|
BWS125
Throttle 28
|
BWS節流閥28
|
ZUMA- Thr30
|
BWS125
Throttle 30
|
BWS節流閥30
|
ZUMA- Thr32
|
BWS125
Throttle 32
|
BWS節流閥32
|
ZUMA- Thr34
|
BWS125
Throttle 34
|
BWS節流閥34
|
FCR28
|
Cygnus
FCR28 carburetor
|
FCR28化油器
|
Taida Motor Part Co,.
No.358, Han Hsi St., East Dist., Taichung
40153, Taiwan
Tel: 886-4-22136599
http://www.taiwantrade.com.tw/EP/tdmotor
http://www.td-motor.com.tw/zh/home.html
E-mail: td87185162@gmail.com
E-mail: td87185162@yahoo.com.tw
台達搪缸廠
台中市東區旱溪街358號
電話:04-22136599
留言
