勁戰125組裝知識（ Cygnus125 Install knowledg，Cygnus125 をインストール知識）


                                    Cygnus125

                                          Cygnus Cylinder= 5ML= GTR=Aeon OZ125=BWS125





























                     CYGNUS 125

CYGNUS Cylinder

BWS125 Original Size: 52.4x 57.9 (123cc) / Big bore Size: 52.4mm~69mm
Cylinder kit is included cylinder body, piston, rings, pin, gaskets and G-ring.
Item number
Description
ZUMA-01052.4
BWS 125
52.4mm casting cylinder,
With casting piston
Height 72.7mm
勁戰=BWS 125= ZUMA 125
52.4mm 鑄造汽缸
+鑄造活塞
高72.7
ZUMA-01052.4f
BWS 125
52.4mm casting cylinder,
With forged piston
Height 72.7mm
勁戰=BWS 125= ZUMA 125
52.4mm 鑄造汽缸
+鍛造活塞
高72.7
ZUMA-01052.4c
BWS 125
52.4mm ceramic cylinder,
With casting piston
Height 72.7mm
勁戰=BWS 125= ZUMA 125
52.4mm 陶瓷汽缸
+鑄造活塞
高72.7
ZUMA-01052.4cf
BWS 125
52.4mm ceramic cylinder,
With forged piston
Height 72.7mm
勁戰=BWS 125= ZUMA 125
52.4mm 陶瓷汽缸
+鍛造活塞
高72.7


Item number
Description
ZUMA-01058.5
BWS 125
58.5mm casting cylinder,
With casting piston
Height 72.7mm
勁戰=BWS 125= ZUMA 125
58.5mm 鑄造汽缸
+鑄造活塞
高72.7
ZUMA-01058.5f
BWS 125
58.5mm casting cylinder,
With forged piston
Height 72.7mm
勁戰=BWS 125= ZUMA 125
58.5mm 鑄造汽缸
+鍛造活塞
高72.7
ZUMA-01058.5c
BWS 125
58.5mm ceramic cylinder,
With casting piston
Height 72.7mm
勁戰=BWS 125= ZUMA 125
58.5mm 陶瓷汽缸
+鑄造活塞
高72.7
ZUMA-01058.5cf
BWS 125
58.5mm ceramic cylinder,
With forged piston
Height 72.7mm
勁戰=BWS 125= ZUMA 125
58.5mm 陶瓷汽缸
+鍛造活塞
高72.7
Item number
Description
ZUMA-01059
BWS 125
59mm casting cylinder,
With casting piston
Height 72.7mm
勁戰=BWS 125= ZUMA 125
59mm 鑄造汽缸
+鑄造活塞
高72.7
ZUMA-01059f
BWS 125
59mm casting cylinder,
With forged piston
Height 72.7mm
勁戰=BWS 125= ZUMA 125
59mm 鑄造汽缸
+鍛造活塞
高72.7
ZUMA-01059c
BWS 125
59mm ceramic cylinder,
With casting piston
Height 72.7mm
勁戰=BWS 125= ZUMA 125
59mm 陶瓷汽缸
+鑄造活塞
高72.7
ZUMA-01059cf
BWS 125
59mm ceramic cylinder,
With forged piston
Height 72.7mm
勁戰=BWS 125= ZUMA 125
59mm 陶瓷汽缸
+鍛造活塞
高72.7

58.5mm cylinder
With casting piston
When go for 3.5mm crankshaft
(short piston problem)
x
New chain or used chain
58.5mm cylinder
With forged piston
Need aluminum gasket
Used chain
59mm cylinder
With casting cylinder
Need aluminum gasket
Used chain
59mm cylinder
With forged piston
Need aluminum gasket
Used chain

Item number
Description
ZUMA-01061
BWS 125
61mm casting cylinder,
With casting piston
Height 73.2mm
勁戰=BWS 125= ZUMA 125
61mm 鑄造汽缸
+鑄造活塞
高73.2
ZUMA-01061f
BWS 125
61mm casting cylinder,
With forged piston
Height 73.2mm
勁戰=BWS 125= ZUMA 125
61mm 鑄造汽缸
+鍛造活塞
高73.2

63.5mm (height 73.2) can go for +3.5
Go for +6.2 or +8.2 crankshaft
(need 6mm aluminum gasket)
Item number
Description
ZUMA-01063.5
BWS 125
63.5mm casting cylinder,
With casting piston
Height 73.2mm
Go for 3.5 cranks, no need AL gasket.
Go for above 6.2 cranks, need AL 6mm.
勁戰=BWS 125= ZUMA 125
63.5mm 鑄造汽缸
+鑄造活塞
高73.2
配350條不用鋁片
配超620條需鋁6mm
ZUMA-01063.5f
BWS 125
63.5mm casting cylinder,
With forged piston
Height 73.2mm
Go for 3.5 cranks, no need AL gasket.
Go for above 6.2 cranks, need AL 6mm.
勁戰=BWS 125= ZUMA 125
63.5mm 鑄造汽缸
+鍛造活塞
高73.2
配350條不用鋁片
配超620條需鋁6mm
ZUMA-01063.5c
BWS 125
63.5mm ceramic cylinder,
With casting piston
Height 73.2mm
Go for 3.5 cranks, no need AL gasket.
Go for above 6.2 cranks, need AL 6mm.
勁戰=BWS 125= ZUMA 125
63.5mm 陶瓷汽缸
+鑄造活塞
高73.2
配350條不用鋁片
配超620條需鋁6mm
ZUMA-01063.5cf
BWS 125
63.5mm ceramic cylinder,
With forged piston
Height 73.2mm
Go for 3.5 cranks, no need AL gasket.
Go for above 6.2 cranks, need AL 6mm.
勁戰=BWS 125= ZUMA 125
63.5mm 陶瓷汽缸
+鍛造活塞
高73.2
配350條不用鋁片
配超620條需鋁6mm

Height 80mm, go for +6.2~+10.0 crankshaft
Item number
Description
ZUMA-01066c-80
BWS 125
66mm ceramic cylinder,
With casting piston
Height 80mm
勁戰=BWS 125= ZUMA 125
66mm 陶瓷汽缸
+鑄造活塞
高80
ZUMA-01066cf-80
BWS 125
66mm ceramic cylinder,
With forged piston
Height 80mm
勁戰=BWS 125= ZUMA 125
66mm 陶瓷汽缸
+鍛造活塞
高80
Item number
Description
ZUMA-01067-80
BWS 125
67mm casting cylinder,
With casting piston
Height 80mm
勁戰=BWS 125= ZUMA 125
67mm 鑄造汽缸
+鑄造活塞
高80
ZUMA-01067f-80
BWS 125
67mm casting cylinder,
With forged piston
Height 80mm
勁戰=BWS 125= ZUMA 125
67mm 鑄造汽缸
+鍛造活塞
高80
ZUMA-01067c-80
BWS 125
67mm ceramic cylinder,
With casting piston
Height 80mm
勁戰=BWS 125= ZUMA 125
67mm 陶瓷汽缸
+鑄造活塞
高80
ZUMA-01067cf-80
BWS 125
67mm ceramic cylinder,
With forged piston
Height 80mm
勁戰=BWS 125= ZUMA 125
67mm 陶瓷汽缸
+鍛造活塞
高80

Item number
Description
ZUMA-01069f-80-1
BWS 125
69mm casting cylinder,
With superior forged piston
Height 80mm
OD:71.5mm
勁戰=BWS 125= ZUMA 125
69mm 鑄造汽缸
+進口鍛造活塞
高80
外71.5
ZUMA-01069f-80-2
BWS 125
69mm casting cylinder,
With superior forged piston
Height 80mm
OD: 74.5mm
勁戰=BWS 125= ZUMA 125
69mm 鑄造汽缸
+進口鍛造活塞
高80
外74.5
ZUMA-01069cf-80-1
BWS 125
69mm ceramic cylinder,
With superior forged piston
Height 80mm
OD:71.5mm
勁戰=BWS 125= ZUMA 125
69mm 陶瓷汽缸
+進口鍛造活塞
高80
外71.5
ZUMA-01069cf-80-2
BWS 125
69mm ceramic cylinder,
With superior forged piston
Height 80mm
OD: 76mm
勁戰=BWS 125= ZUMA 125
69mm 陶瓷汽缸
+進口鍛造活塞
高80
外76


59mm cylinders don’t need to cut case.
CASE STD open to 62mm, biggest can cut to 72mm (oil way won’t broke)
61mm cylinders (OD: 65mm) start to cut case.
69mm cylinder
OD: 71.5mm
Just cut case
OD: 76mm
1.   Cut case
2.   Make up case
From 70mm cylinder all need to cut case and also make up case.



NEW Height 80mm, go for +6.2~+10.0 crankshaft
Item number
Description
CYG-010-70cf-80
BWS 125
70mm ceramic cylinder,
With superior forged piston
Height 80mm
勁戰125
70mm 陶瓷汽缸
+進口鍛造活塞
高80

Item number
Description
CYG-010-71cf-80
BWS 125
71mm ceramic cylinder,
With superior forged piston
Height 80mm
勁戰125
71mm 陶瓷汽缸
+進口鍛造活塞
高80

Item number
Description
CYG-010-74cf-80
BWS 125
74mm ceramic cylinder,
With superior forged piston
Height 80mm
勁戰125
74mm 陶瓷汽缸
+進口鍛造活塞
高80

CYGNUS Cylinder locator pin
Model  No
Description
BWS-pin1014
Locator pin 10*14mm (4/set)
All TD cylinders fit this one.
勁戰 定位銷 10*14mm  (4個一組)
BWS-pin1020
Locator pin 10*20mm (4/set)
勁戰 定位銷 10*20mm (4個一組)



CYGNUS Cylinder head& Rocker arms
Model  No
Description
ZUMA-020-19/17-STD
BWS 125 head 19/17 STD
Need to go for arm 23mm
BWS125 加大汽門 原廠 19/17
ZUMA-020-22/19
BWS 125 head 22/19
Need to go for arm 23mm
BWS125 加大汽門 22/19
ZUMA-020-23/21
BWS 125 head 23/21
Need to go for arm 23mm
BWS125 加大汽門 23/21
ZUMA-020-24/22
BWS 125 head 24/22
Need to go for arm 26mm
BWS125 加大汽門 24/22
NEW
ZUMA-020-25/23-TD
BWS 125 head 25/23 (TD LOGO)
Need to go for arm 26mm
BWS125 加大汽門 25/23
NEW
ZUMA-020-26/23-TD
BWS 125 head 26/23 (TD LOGO)
Need to go for arm 26mm
BWS125 加大汽門 26/23
ZUMA-020-27/24
BWS 125 head 27/24
Need to go for arm 26mm
BWS125 加大汽門 27/24
ZUMA-020-27/25
BWS 125 head 27/25
Need to go for arm 26mm
BWS125 加大汽門 27/25



Model  No
Description
US Price

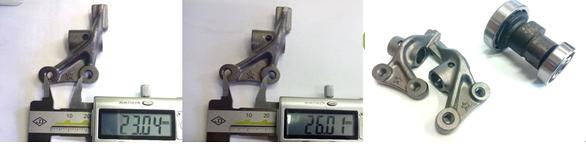

ZUMA-arm23
 BWS 125 STD strengthen Rocker 23mm
勁戰搖臂-原廠
ZUMA-arm26
 BWS 125 reinforced strengthen Rocker 26mm
勁戰搖臂-外移



CYGNUS Camshaft
Model  No
Description
US Price
ZUMA-cam-t1
BWS 125 camshaft T1 (upgraded)
BWS125 T1凸輪軸
ZUMA- cam-t2
BWS 125 camshaft T2 (upgraded)
BWS125T2凸輪軸
ZUMA- cam-t3
BWS 125 camshaft T3 (upgraded)
BWS125T3凸輪軸
ZUMA- cam-t5
BWS 125 camshaft T5 (upgraded)
BWS125T5凸輪軸
ZUMA- cam-t6
BWS 125 camshaft T6 (upgraded)
BWS125T6凸輪軸
ZUMA- cam-king
BWS 125 camshaft king (upgraded)
BWS125KING凸輪軸



T1
Power at beginning and middle
(起中)
Fit 150-180cc
IN
21.2/26.3
LIFT
5.1
EX
21.3/26.4
5.1
T2
Power at the last (big upgraded)
(中尾/大改)
Fit more 200cc
IN
19.5/26.0
LIFT
6.5
EX
19.7/26.25
6.55
T3
Power at the last (fit 67mm)
(中尾/適合67汽缸)
Fit 180-200cc
IN
19.75/25.4
LIFT
5.65
EX
19.8/25.85
6.05
T5
Power at the last(中尾)
Fit more 200cc
IN
18.05/24.2
LIFT
6.15
EX
18.0/24.15
6.15
T6
Power at the last (small upgraded)
(中尾/小改)
Fit180-200cc
IN
20.0/25.25
LIFT
5.25
EX
20.55/25.85
5.3
KING
Power at the last (big noise)
(中尾/聲音大)
Fit more 200cc
IN
21.7/26.85
LIFT
5.15
EX
21.75/26.9
5.15



CYGNUS Crankshaft

+6.2~+10.0 crankshaft go for cylinder height 80mm
(Cylinder height 80 goes for above +6.2 no need 6mm aluminum gasket)
 (Cylinder 63.5mm goes for above +6.2 MUST need 6mm AL gasket)

Model  No
Description
CYG-030-STD
BWS125 STD crankshaft (57.9mm)
No studs, chain and aluminum gasket.
勁戰125 原廠曲軸only
無內鍊+螺絲柱
CYG-030250
BWS125 2500 microns stroke extended crankshaft (60.4mm)
No studs, chain and aluminum gasket.
勁戰125 250條曲軸only
無內鍊+螺絲柱
CYG-030350
BWS125 3500 microns stroke extended crankshaft (61.4mm)
No studs, chain and aluminum gasket.
勁戰125 350條曲軸only
無內鍊+螺絲柱
CYG-030620-c
BWS125 6200 microns stroke extended crankshaft (64.1mm)
Included chain, studs 236*4+96 link
and aluminum gasket 6mm
勁戰125 620條曲軸
含內鍊+螺絲柱+鋁墊片6mm
CYG-030620-b
BWS125 6200 microns stroke extended crankshaft (64.1mm)
Included chain, studs 236*4+96 link
勁戰125 620條曲軸
含內鍊+螺絲柱
CYG-030620-a
BWS125 6200 microns stroke extended crankshaft (64.1mm)
No studs, chain and aluminum gasket.
勁戰125 620條曲軸only
無內鍊+螺絲柱
NEW
CYG-030820-c
BWS125 8200 microns stroke extended crankshaft (66.1mm)
Included chain, studs 236*4+96 link
and aluminum gasket 6mm
勁戰125 820條曲軸
含內鍊+螺絲柱+鋁墊片6mm
NEW
CYG-030820-b
BWS125 8200 microns stroke extended crankshaft (66.1mm)
Included chain, studs 236*4+96 link
勁戰125 820條曲軸
含內鍊+螺絲柱
NEW
CYG-030820-a
BWS125 8200 microns stroke extended crankshaft (66.1mm)
No studs, chain and aluminum gasket.
勁戰125 820條曲軸only
無內鍊+螺絲柱
CYG-0301000-c
BWS125 10000 microns stroke extended crankshaft (67.9mm)
Included chain, studs 236*4+96 link
and aluminum gasket 6mm
勁戰125 1000曲軸
含內鍊+螺絲柱+鋁墊片6mm
CYG-0301000-b
BWS125 10000 microns stroke extended crankshaft (67.9mm)
Included chain, studs 236*4+96 link
勁戰125 1000曲軸
含內鍊+螺絲柱
CYG-0301000-a
BWS125 10000 microns stroke extended crankshaft (67.9mm)
No studs, chain and aluminum gasket.
勁戰125 1000曲軸only
無內鍊+螺絲柱

CYGNUS matching
Head
arm
cylinder
crankshaft
studs
chain
camshaft
19/17 STD
23
72.7: 52.4
57.9 STD
225*4
94
STD
22/19
23
72.7: 58.5
72.7: 59
57.9 STD
60.4 (+2.5)
61.4 (+3.5)
225*4
94
T1, T6, T3
23/21
26
73.2 H: 61
60.4 (+2.5)
61.4 (+3.5)
225*4
94
T1, T6, T3
24/22
26
73.2 H: 63.5
61.4 (+3.5)
225*4
94
T1, T6, T3
73.2 H: 63.5
Need AL 6mm.
64.1 (+6.2)
66.1 (+8.2)
236*4
96
T1, T6, T3
25/23 TD
26
80 H: 66, 67
64.1 (+6.2)
66.1 (+8.2)
67.9 (+10.0)
236*4
96
T2
26/23 TD
26
80 H: 66, 67, 69, 70, 71, 74
64.1 (+6.2)
66.1 (+8.2)
67.9 (+10.0)
236*4
96
T2
27/24
26
80 H: 66, 67, 69, 70, 71, 74
64.1 (+6.2)
66.1 (+8.2)
67.9 (+10.0)
236*4
96
T2
27/25
23
80 H: 67, 69, 70, 71, 74
64.1 (+6.2)
66.1 (+8.2)
67.9 (+10.0)
236*4
96
T2


CYGNUS Combo
Model  No
Description
ZUMA-090-165cf
165cc combo
58.5mm ceramic cylinder with forged piston
(72.7 height)
+3.5 crankshaft
+22/19 head
+23mm arm
+T1 camshaft
165cc套件
58.5陶瓷+鍛造缸(72.7高)
+350條
+22/19蓋
+23搖臂
+T1凸輪軸
ZUMA-090-179
179cc combo
61mm cylinder (73.2 height)
+3.5 crankshaft
+23/21 head
+26mm arm
+T1 camshaft
179cc套件
61缸(73.2高)
+350條
+23/21蓋
+26搖臂-外移
+T1凸輪軸
ZUMA-090-194c
194cc combo
63.5mm ceramic cylinder (73.2 height)
+3.5 crankshaft
+24/22 head
+26mm arm
+T3 camshaft
194cc套件
63.5陶瓷缸(73.2高)
+350條
+24/22蓋
+26搖臂-外移
+T3凸輪軸
ZUMA-090-209c
209cc combo
63.5mm ceramic cylinder (73.2 height)
+8.2 crankshaft
+24/22 head
+26mm arm
+6mm aluminum gasket
+T3 camshaft
209cc套件
63.5陶瓷缸(73.2高)
+820條
+24/22蓋
+26搖臂-外移
+6mm鋁墊片
+T3凸輪軸
ZUMA-090-247cf
247cc combo
69mm ceramic cylinder with superior forged piston
(80 height)
+8.2 crankshaft
+27/25 head
+23mm arm
+T2 camshaft
247cc套件
69陶瓷+進口鍛造缸(80高)
+820條
+27/24蓋
+23搖臂
+T2凸輪軸
CYG-090-284cf
284cc combo
74mm ceramic cylinder with superior forged piston
(80 height)
+8.2 crankshaft
+27/25 head
+23mm arm
+T2 camshaft
284cc套件
74陶瓷+進口鍛造缸(80高)
+820條
+27/24蓋
+23搖臂
+T2凸輪軸



CYGNUS Oil cooling
Model  No
Description
ZUMA-050
BWS125 oil Cooling kit
勁戰油冷組
ZUMA-050-non
BWS125 oil Cooling plate
勁戰油盤
ZUMA-050-SCREW
BWS 125 Screw set
( for oil cooler case use, 2/set )
IN RANDOM COLORS
勁戰油冷接頭
(2支一組)
ZUMA-050-oring
BWS 125 O-ring of oil cooling
勁戰油冷電盤油圈
ZUMA-050-gas
BWS 125 oil pump cover gasket of oil cooling
勁戰油冷電盤墊片

CYGNUS Ventilation
Model  No
Description
ZUMA-V-B
BWS125 ventilation kit-black
勁戰125散熱蓋-黑
ZUMA-V-O
BWS125 ventilation kit-orange
勁戰125散熱蓋-橘
ZUMA-V-S
BWS125 ventilation kit-silver
勁戰125散熱蓋-銀

CYGNUS Titanium retainer& spring
Model  No
Description
ZUMA-ABVC
BWS125 titanium valve retainer (4/set)
勁戰125鈦帽
ZUMA-sprB
BWS125 upgraded spring 4/set
勁戰改裝彈簧 B
ZUMA-sprA
BWS125 upgraded spring 4/set
More stronger
勁戰強化彈簧 A

CYGNUS Starter motor
Model  No
Description
ZUMA-MP001
BWS125  Maximum Torque Power motor
勁戰起動馬達
ZUMA-MP002
BWS125  Maximum Torque Power motor
(big upgrade) 200cc
勁戰起動馬達(大改)

CYGNUS Gear
Model  No
Description
CYG-gear1438
Cygnus gear for accelerate ( 14T * 38 ) (upgraded)
勁戰加速齒輪14*38
CYG-gear1537
Cygnus gear for accelerate ( 15T * 37 ) (upgraded)
勁戰加速齒輪15*37
CYG-gear1636
Cygnus gear for accelerate ( 16T * 36 ) (upgraded)
勁戰加速齒輪16*36

CYGNUS Clutch
Model  No
Description
CYG-SC
Cygnus upgraded starter clutch set
勁戰啟動盤組

CYGNUS Exhaust pipe
Model  No
Description
ZUMA-ep69
BWS125  Exhaust Pipe For 69mm
BWS排氣管 / 適合69汽缸
ZUMA -ep67
BWS125  Exhaust Pipe For 67mm
BWS排氣管 / 適合67汽缸
ZUMA -ep63
BWS125  Exhaust Pipe For 63mm
BWS排氣管 / 適合63汽缸
ZUMA -ep58.5
BWS125  Exhaust Pipe For 58.5mm
BWS排氣管 / 適合58.5汽
ZUMA -ep58.5-b
BWS125  Exhaust Pipe For 58.5mm
(Front normal color, rear black)
BWS排氣管 / 適合58.5汽
(前段-白鐵/後段-一般鐵拷黑)

CYGNUS Water cooled
Model  No
Description
ZUMA-06063.5
BWS water cooled 63.5mm casting cylinder with casting piston
勁戰
水冷63.5汽缸
ZUMA-06063.5f
BWS water cooled 63.5mm casting cylinder with forged piston
勁戰
水冷63.5汽缸+鍛造活塞
ZUMA-06065
BWS water cooled 65mm casting cylinder with casting piston
勁戰
水冷65汽缸
ZUMA-06065f
BWS water cooled 65mm casting cylinder with forged piston
勁戰
水冷65汽缸+鍛造活塞

Model  No
Description
ZUMA-090-66wc
BWS Oversize water cooler Cylinder Kit : 210cc
l   water cooler 66 mm ceramic Cylinder
l   High angle Rolling the round Camshaft
l   water cooler cylinder head 4V 24/22
l   Rolling the round strengthen Rocker
Water cooled cylinder and head
fit BWS 3500 crankshaft (61.4mm)
勁戰4V水冷汽缸組(210cc)
水冷缸、水冷蓋
l   水冷66陶瓷汽缸
l   滾輪式高角度凸輪軸
l   水冷加大汽門24/22
l   滾輪式強化搖臂
適合350條曲軸
ZUMA-06066c
BWS water cooled 66mm ceramic cylinder with casting piston
勁戰
水冷66陶瓷汽缸
ZUMA-06066cf
BWS water cooled 66mm ceramic cylinder with forged piston
勁戰
水冷66陶瓷汽缸+鍛造活塞

CYGNUS Piston& Rings
Model  No
Description

ZUMA-pis52.4
BWS125 52.4mm P+R
勁戰52.4 活塞環組
ZUMA-pis52.4f
BWS125 52.4mm P+R forged
勁戰52.4 鍛造活塞環組
ZUMA-pis58.5
BWS125 58.5mm P+R
勁戰58.5活塞環組
ZUMA-pis58.5f
BWS125 52.4mm P+R forged
勁戰58.5鍛造活塞環組
ZUMA-pis59
BWS125 59mm P+R
勁戰59 活塞環組
ZUMA-pis59f
BWS125 59mm P+R forged
勁戰59 鍛造活塞環組
ZUMA-pis61
BWS125 61mm P+R
勁戰61 活塞環組
ZUMA-pis61f
BWS125 61mm P+R forged
勁戰61 鍛造活塞環組
ZUMA-pis63.5
BWS125 63.5mm P+R
勁戰63.5 活塞環組
ZUMA-pis63.5f
BWS125 63.5mm P+R forged
勁戰63.5 鍛造活塞環組
ZUMA-pis66f-80
BWS125 66mm P+R forged
For 80 height cylinder
勁戰66鍛造活塞環組
80長用
ZUMA-pis67f-80
BWS125 67mm P+R forged
For 80 height cylinder
勁戰67鍛造活塞環組
80長用
ZUMA-pis69f-80
BWS125 69mm P+R forged superior
For 80 height cylinder
勁戰69進口鍛造活塞環組
80長用
Model  No
Description

CYG-pis70f-80
BWS125 70mm P+R forged superior
For 80 height cylinder
勁戰70進口鍛造活塞環組
80長用
CYG-pis71f-80
BWS125 71mm P+R forged superior
For 80 height cylinder
勁戰71進口鍛造活塞環組
80長用
CYG-pis74f-80
BWS125 74mm P+R forged superior
For 80 height cylinder
勁戰74進口鍛造活塞環組
80長用

CYGNUS Ring set
Model  No
Description

ZUMA-ring52.4
BWS125 52.4mm ring set
1.0+1.0+2.0
勁戰 52.4活塞環1.0
ZUMA-ring58.5-1
BWS125 58.5mm ring set
0.8+0.8+2.0
勁戰 58.5活塞環0.8
ZUMA-ring58.5-2
BWS125 58.5mm ring set
1.0+1.0+2.0
勁戰 58.5活塞環1.0
ZUMA-ring59-1
BWS125 59mm ring set
0.8+0.8+2.0
勁戰 59活塞環0.8
ZUMA-ring59-2
BWS125 59mm ring set
1.0+1.0+2.0
勁戰 59活塞環1.0
ZUMA-ring61
BWS125 61mm ring set
1.0+1.0+2.0
勁戰 61活塞環1.0
ZUMA-ring63.5
BWS125 63.5mm ring set
0.8+0.8+2.0
勁戰 63.5活塞環0.8
ZUMA-ring66
BWS125 66mm ring set
0.8+0.8+2.0
勁戰 66活塞環0.8
ZUMA-ring67
BWS125 67mm ring set
0.8+0.8+2.0
勁戰 67活塞環0.8
ZUMA-ring69
BWS125 69mm ring set
0.8+0.8+2.0
勁戰 69活塞環0.8
Model  No
Description

CYG-ring70
BWS125 70mm ring set
0.8+0.8+2.0
勁戰 70活塞環0.8
CYG-ring71
BWS125 71mm ring set
0.8+0.8+2.0
勁戰 71活塞環0.8
CYG-ring74
BWS125 74mm ring set
0.8+0.8+2.0
勁戰 74活塞環0.8

CYGNUS Gasket set
Model  No
Description

ZUMA-gas52.4
BWS125 STD 52.4mm gasket set
Steel+0.5
勁戰52.4 墊片半組
ZUMA-gas58.5
BWS125 58.5mm gasket set
Steel+0.5+0.8
勁戰58.5 墊片半組
ZUMA-gas59
BWS125 59mm gasket set
Steel+0.5+0.8
勁戰59 墊片半組
ZUMA-gas61
BWS125 61mm gasket set
Steel+0.5+0.8
勁戰61 墊片半組
ZUMA-gas63.5
BWS125 63.5mm gasket set
Steel+0.5+0.8
勁戰63.5 墊片半組
ZUMA-gas66
BWS125 66mm gasket set
Steel+0.5+0.8
勁戰66 墊片半組
ZUMA-gas67
BWS125 67mm gasket set
Steel+0.5+0.8
勁戰67 墊片半組
ZUMA-gas69
BWS125 69mm gasket set
Steel+0.5+0.8
勁戰69 墊片半組
Model  No
Description

CYG-gas70
BWS125 70mm gasket set
Steel+0.5+0.8
勁戰70 墊片半組
CYG-gas71
BWS125 71mm gasket set
Steel+0.5+0.8
勁戰71 墊片半組
CYG-gas74
BWS125 74mm gasket set
Steel+0.5+0.8
勁戰74 墊片半組




CYGNUS Studs& chain
Model  No
Description
ZUMA-stud225
BWS Stud 225mm (4/set)
勁戰螺絲柱4支225
ZUMA -stud236
BWS Stud 236mm (4/set)
勁戰螺絲柱4支236
ZUMA -CHAIN-94
BWS chain 94
勁戰94目內鏈
ZUMA -CHAIN-96
BWS chain 96
勁戰96目內鏈
ZUMA -CHAIN-106
BWS chain 106
勁戰106目內鏈



CYGNUS aluminum gasket

Need to check the inventory.
Model  No
Description
ZUMA -agas63-0.3
BWS125 steel 63mm gasket
Thickness: 0.3mm
勁戰63鋁墊片0.3mm
ZUMA -agas63-0.5
BWS125 steel 63mm gasket
Thickness: 0.5mm
勁戰63鋁墊片0.5mm
ZUMA - agas63-0.8
BWS125 steel 63mm gasket
Thickness: 0.8mm
勁戰63鋁墊片0.8mm
ZUMA - agas63-1.0
BWS125 steel 63mm gasket
Thickness: 1.0mm
勁戰63鋁墊片1mm
ZUMA -agas67-0.3
BWS125 steel 67mm gasket
Thickness: 0.3mm
勁戰67鋁墊片0.3mm
ZUMA -agas67-0.5
BWS125 steel 67mm gasket
Thickness: 0.5mm
勁戰67鋁墊片0.5mm
ZUMA - agas67-0.8
BWS125 steel 67mm gasket
Thickness: 0.8mm
勁戰67鋁墊片0.8mm
ZUMA - agas67-1.0
BWS125 steel 67mm gasket
Thickness: 1.0mm
勁戰67鋁墊片1mm
ZUMA -agas70.5-6
BWS125 aluminum 70.5mm gasket
Thickness: 6mm
勁戰70.5鋁墊片6mm
ZUMA -agas75-6
BWS125 aluminum 75mm gasket
Thickness: 6mm
勁戰75鋁墊片6mm



CYGNUS Bearing
Model  No
Description
ZUMA-bearing62
BWS 125 bearing 62mm
Pulley side 6305
BWS 125 62mm 曲軸培林
6305
ZUMA-bearing 56
BWS 125 mm bearing 56mm
BOLT (CO4A86)
BWS 125 56mm 曲軸培林
C8-8


CYGNUS Crankshaft Seal
Model  No
Description
ZUMA-CSS
BWS crank seal set (2/set)
BWS 125 曲軸油封(左右)
HTCL 22 32 7 2 KOK
HTCR 19 30 5 6463 6 KOK



CYGNUS Transmission seal
Model  No
Description
ZUMA-TSS
BWS125 transmission seal (2/set)
BWS 125 傳動油封(左右)
PIANIK 6519 HTC 26 48 7R 7
PIA TC 22 39 6 6527 23



CYGNUS Injector 58.5 cylinder
Model  No
Description
US Price
ZUMA-injc58.5
ZUMA125 injector 145cc
For 58.5 cylinder+3.5crankshaft
勁戰125 噴油嘴145cc
配58.5缸+350條



CYGNUS Nut for head

Model  No
Description
ZUMA-LN22.5
BWS125  Long nut 22.5mm for head (4/set)
勁戰缸蓋加長螺帽(附華司)


CYGNUS Carburetor& throttle

Model  No
Description
Cygnus-IM30
 Manifold 30mm
勁戰歧管30
Cygnus-IM36
 Manifold 36mm
勁戰歧管36
CYG- Thr28
Cygnus Throttle 28
勁戰節流閥28
CYG- Thr30
Cygnus Throttle 30
勁戰節流閥30
CYG- Thr32
Cygnus Throttle 32
勁戰節流閥32
CYG- Thr34
Cygnus Throttle 34
勁戰節流閥34
FCR28
Cygnus FCR28 carburetor 28mm
FCR28化油器

CYGNUS Rolling Camshaft
Model  No
Description

ZUMA-cam-H1AS
Rolling camshaft H1
+Rolling arms
+ upgraded spring A
This is for small upgrading use:
125cc~160cc
10 units @99USD (99*10=990 USD)
勁戰小改
滾針H1凸輪軸+滾針搖臂+彈簧A



Taida Motor Part Co,.
No.358, Han Hsi St., East Dist., Taichung
40153, Taiwan
Tel: 886-4-22136599
http://www.taiwantrade.com.tw/EP/tdmotor
http://www.td-motor.com.tw/zh/home.html
E-mail: td87185162@gmail.com
E-mail: td87185162@yahoo.com.tw
台達搪缸廠
台中市東區旱溪街358號

電話:04-22136599


位置： 401台灣台中市東區十甲里

留言

不接受新意見。

這個網誌中的熱門文章

迪奧組裝知識（ Dio Install knowledg，Dio をインストール知識）

圖片
DIO 50=39x41.4 (H) 半 DIO 90=50x49.6 (F) 全 12pin Horizontal, af34.af35 (No offer) Vertical (L shape) Honda af16.af18 DIO50 半組 half kit 曲軸 Crank 汽缸 + 蓋 Cylinder + head 排氣數 c.c. 39x 41.4 Original 41.4 DIO50-030 39 49 cc 50(H:68.4) 81 cc 43.4(2000) DIO65-030200 39 51 cc 45-aluminum 69 cc 50(H:68.4) 85 cc DIO90 全組 full kit 曲軸 Crank 汽缸 + 蓋 Cylinder + head 排氣數 c.c. 50 x 49.6 PH19-CH75 PH21-CH77 or 78 51.6(2000) DIO90-030200 50(H:75) (PH:19) 101 cc 52(PH:19) 109 cc 52(PH:21) 109 cc 54(H:75) 118 cc 54(H:78/PH:21) 118 cc 55 122 cc 56 127 cc 52.6(3000) DIO90-030300 50(H:75) 103 cc ...
閱讀完整內容

噴射車系 小改直上引擎套件組 (原廠尺寸高壓縮比設定汽缸, 小改 加大高壓縮比設定汽缸)

圖片
噴射小改 直上引擎套件紅 不需外加電腦 免換噴油嘴 ( 視車況而定 ) 及節氣門 原廠系統即可對應 ! 凸頂活塞高壓縮比設定 　 適用車種 　 其他車種須洽詢 　 YAMAHA 　勁戰 3/4 代 ,110/115,S-MAX, BWS125 　 KYMCO 　 Racing 全系列 , Many, VJR100/110, G5, G6 　 SYM 　 Fighter, Jet Power, IRX115, Z1 Fuel injection small upgrade cylinder kit doesn't need to machine engine case. -NO need ECU, No change jet and throttle -Just go with original (STD) parts -Customized dome, high compression piston 　 YAMAHA 　 Cygnus 125,110/115,S-MAX, BWS125 　 KYMCO 　 Racing, Many, VJR100/110, G5, G6 　 SYM 　 Fighter, Jet Power, IRX115, Z1 就算只是原廠尺寸的汽缸, 裝了台達的凸頂活塞, 機車會明顯有力加速快~ 凸頂約比平頂凸約1mm~2mm, ( 不能做太凸, 太凸也會有很難發動的問題以下車訊網也有解釋原因), 有些人會問, 那它旳缺點呢? 在台達凸頂活塞+有改裝經驗技術好的店家, 缺點不能說完全不見了, 但缺點已降低很多~ 壓縮比= ( 排氣量CC數燃燒室容積)／燃燒室容積 一般可以從車主使用手冊上的說明，得知該車輛的引擎壓縮比，以國內一般現有機車的引擎壓縮比大部分以92及95無鉛汽油為主．但少數特殊車種的壓縮比標示會高於10：1以上．此時將建議使用98無鉛汽油． 壓縮比9 以下建議使用92無鉛汽油 壓縮比9~10之間建議...
閱讀完整內容

汽缸比對圖~

圖片
有很多客人問 他的機車是舊迪爵 所以訂貨迪爵 , 為什麼引擎卻是悍將 2V 的汽缸 ??? 没錯 , SYM 的引擎不容易理解 …. 有圖有故事 , 還是比對一下才不會訂錯貨了 ~ 例出最容易出錯的車種 , 來分辨吧 … 風雲有二種 :  第一種是 H12 和豪邁   2V 分離式 ( 油溝長 ), 第二種是 高手 125, 150 是悍將 2V 一体式 ( 油溝 短 ), 高手 125cc 一体式 = 悍將 2V 汽缸 ( 油溝短 ), M92 汽缸 分離式是 豪邁 125, H12, ( 油溝長 ), M92 汽缸 一体式是 = 悍將 2V 一体式 ( 油溝短 ), 舊迪爵 一体式 = 悍將 2V 汽缸 ( 油溝短 )  有圖片對照 舊迪爵 汽缸蓋上面印上SYM B     舊迪爵 汽缸上面印上H6B-1                                           SUZUKI 雄獅125 引擎型式︰二行程，氣冷，單缸引擎  缸徑 x 行程︰ 54 x 54 mm  排氣量︰123.7 cc  雄獅125 搪缸       雄獅125 銖巢+肖子   雄獅125 曲軸+銖巢   雄獅125 培林    雄獅125 墊片全組  雄獅125 連桿     雄獅 125 汽缸蓋(車平) SUZUKI BS125 engine parts  BS125 Original Size : 54*54=123.7 cc  BS125 cylinder boring  BS125 pin  BS125 crankshaft  BS125 b...
閱讀完整內容
