豪邁組裝知識 ( GY6 Install knowledg, GY6をインストール 知識 )










The GY6 Cylinder head spacing 57mm must process extend till 70mm for 63~67mm cylinder.


 The Gy6 Cylinder head spacing 54mm must process extend till 66~66.5mm for 61~63mm cylinder.

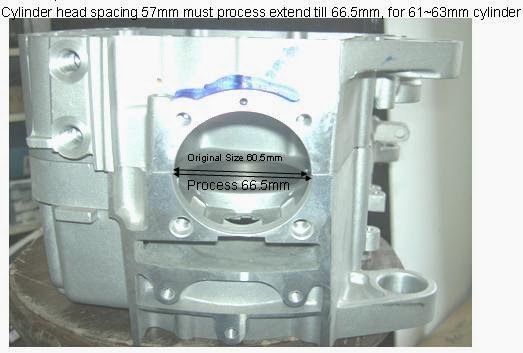

The Gy6 Cylinder head spacing 57mm must process extend till 66.5mm for 61~63mm cylinder .
      GY6 Cylinder neck Tool















152qmi = 52.4 x 57.8mm
157qmj = 57.4 x 57.8mm

Original crank shaft 57.8mm

GY6 3000 microns stroke extended crank shaft = 57.8+3=  60.8 mm
            If you buy 63mm cylinder = 63* 60.8mm= 189.5cc

GY6 3600 microns stroke extended crank shaft = 57.8+3.6= 61.4 mm
            If you buy 63mm cylinder = 63* 61.4mm= 191.4cc

GY6 6200 microns stroke extended crank shaft = 57.8+6.2= 64mm
              If you buy 63mm cylinder = 63* 64mm= 199.5cc

GY6 8200 microns stroke extended crank shaft = 57.8+8.2= 66mm
              If you buy 63mm cylinder = 63* 66mm= 205.7cc

GY6 125.150

125cc = 152QMI
52.4 x 57.8
150cc = 157QMJ
57.4 x 57.8


GY6 2V 232 cc Engine Combo
We mount this kit on scooter and get the power about 19+HP, tested on wheel.
This combo is easy for those who want to build big upgrade for the scooter.
We use ceramic cylinder and forged piston for the good quality.

Model  No
Description
GY6-090-2V57-232
GY6 2V 232cc Engine Combo (57mm spacing)
67mm ceramic cylinder with forged piston
+ head 30.5/26.5
+ T300
+ 8.2 crankshaft (with chain and studs)
GY6 2V 232cc 套件
67陶缸+鍛造活塞+30.5/26.5加大汽門+T300
+820條(附內鏈+螺絲柱)


GY6 2V Engine Combo
Model  No
Description
GY6-090-2V57-232
GY6 2V 232cc Engine Combo (57mm spacing)
67mm ceramic cylinder with forged piston
+ head 30.5/26.5
+ T300
+ Rocker arm set
+ 8.2 crankshaft (with chain and studs)
GY6 2V 232cc 套件
67陶缸+鍛造活塞+30.5/26.5加大汽門+T300
+搖臂座組
+820條(附內鏈+螺絲柱)
GY6-090-2V57-203
GY6 2V 203cc Engine Combo (57mm spacing)
63.5mm casting cylinder with forged piston
+ head 30.5/26.5
+ T300
+ Rocker arm set
+ 6.6 crankshaft (with chain and studs)
GY6 2V 203cc 套件
63.5缸+鍛造活塞+30.5/26.5加大汽門+T300
+搖臂座組
+660條(附內鏈+螺絲柱)
GY6-090-2V57-179
GY6 2V 179cc Engine Combo (57mm spacing)
61mm casting cylinder with forged piston
+ head 28/23
+ T300
+ Rocker arm set
+ 3.5 crankshaft
GY6 2V 179cc 套件
67缸+鍛造活塞
+28/23加大汽門
+T300
+搖臂座組
+350條
Model  No
Description
GY6-090-2V54-200
GY6 2V 200cc Engine Combo (54mm spacing)
63mm ceramic cylinder with forged piston
+ head 30.5/26.5
+ T300
+ Rocker arm set
+ 6.6 crankshaft (with chain and studs)
GY6 2V 200cc 套件
63陶缸+鍛造活塞+30.5/26.5加大汽門+T300
+搖臂座組
+660條(附內鏈+螺絲柱)
GY6-090-2V54-205
GY6 2V 205cc Engine Combo (54mm spacing)
63mm ceramic cylinder with forged piston
+ head 30.5/26.5
+ T300
+ Rocker arm set
+ 8.2 crankshaft (with chain and studs)
GY6 2V 205cc 套件
63陶缸+鍛造活塞+30.5/26.5加大汽門+T300
+搖臂座組
+8.2條(附內鏈+螺絲柱)
GY6-090-2V54-179
GY6 2V 179cc Engine Combo (54mm spacing)
61mm ceramic cylinder with forged piston
+ head 28/23 (intake and exhaust holes)
+ T300
+ Rocker arm set
+ 3.5 crankshaft
GY6 2V 179cc 套件
61陶缸+鍛造活塞
+28/23加大汽門(大進排)
+T300
+搖臂座組
+350條
GY6-090-2V54-164
GY6 2V 164cc Engine Combo (54mm spacing)
58.5 ceramic cylinder with casting piston
+ head 28/23
+ T300
+ Rocker arm set
+ 3.5 crankshaft
This combo doesn’t need to cut the engine case.
GY6 2V 164cc 套件
58.5陶缸
+28/23加大汽門
+T300
+搖臂座組
+350條
不須車KS


ADDITIONAL ITEMS, NO DOUBLE DISCOUNT!!
GY6-KS-L
GY6 long case set
57mm spacing
Include gasket for crankcase
Open to 70mm
豪邁長KS組(57中心距)
315*0.9=283 USD
This price only for combo.
GY6-050
GY6 oil cooler set
Oil KS, oil cooing, oil hose.
豪邁油冷組
含油冷排、油管+接頭、油冷KS
193*0.9=173 USD
This price only for combo.
GY6-050-NOKS
No case set
Oil cooling, oil hose.
(If you had TD KS already, you don’t need to buy KS.)
豪邁油冷組
含油冷排、油管+接頭
無KS
113*0.9=101 USD
This price only for combo.
GY6-cov-2V
GY6 cam cover+ gasket ( non EGR )
豪邁凸輪軸蓋+油圈2V
23*0.9=21 USD
This price only for combo.





Model  No
Description
GY6-090-4V57-232
GY6 4V 232cc Engine Combo (57mm spacing)
67mm ceramic cylinder with forged piston
+ head 23/22 (L)
(with cam, cover, arm set, chain and studs)
+ 8.2 crankshaft
GY6 4V 232cc 套件
67陶缸+鍛造活塞
+23/22加大汽門
(含凸輪軸+蓋+搖臂組
+內鏈+螺絲柱)
+820條
GY6-090-4V57-194
GY6 4V 194cc Engine Combo (57mm spacing)
63.5mm casting cylinder with forged piston
+ head 23/22 (M)
(with cam, cover, arm set, chain and studs)
+ 3.5 crankshaft
GY6 4V 194cc 套件
67缸+鍛造活塞
+23/22加大汽門
(含凸輪軸+蓋+搖臂組
+內鏈+螺絲柱)
+350條
GY6-090-4V57-179
GY6 4V 179cc Engine Combo (57mm spacing)
61mm casting cylinder with forged piston
+ head 22/21 (S)
(with cam, cover, arm set, chain and studs)
+ 3.5 crankshaft
GY6 4V 179cc 套件
61缸+鍛造活塞
+22/21加大汽門
(含凸輪軸+蓋+搖臂組
+內鏈+螺絲柱)
+350條
Model  No
Description
GY6-090-4V54-205
GY6 4V 205cc Engine Combo (54mm spacing)
63mm ceramic cylinder with forged piston
+ head 23/22
(with cam, cover, arm set, chain and studs)
+ 8.2 crankshaft
GY6 4V 205cc 套件
63陶缸+鍛造活塞
+23/22加大汽門
(含凸輪軸+蓋+搖臂組
+內鏈+螺絲柱)
+820條
GY6-090-4V54-164
GY6 4V 164cc Engine Combo (54mm spacing)
58.5mm ceramic cylinder with casting piston
+ head 22/21
(with cam, cover, arm set, chain and studs)
+ 3.5 crankshaft
GY6 4V 164cc 套件
58.5陶缸
+22/21加大汽門
(含凸輪軸+蓋+搖臂組
+內鏈+螺絲柱)
+350條



GY6 Big Bore Cylinder Kit

Usually offer 2V piston but can offer 4V one too.
GY6 have 2 kinds of stud spacing, 54 and 57mm.
We have good quality CERAMIC CYLINDER KIT.
Why our ceramic cylinder is so popular?
Ceramic cylinder is more expensive and lighter than casting one.
It’s electroplated a thin ceramic coat on the cylinder wall.
Make the cylinder durable and can stand high temperature and easy to dissipate heat.
And the longevity is longer than casting one and good for long period riding.
High compression piston problem!
High compression piston make engine start well but high temperature.



Item number
Description
GY6-01054-52.5
124cc
GY6 54 spacing
52.4mm casting cylinder,
with casting piston
Outer diameter: 58 mm
Cylinder height: 68.8 mm
Cut KS: x
豪邁 54中心距
52.4mm 鑄造汽缸
+鑄造活塞
外徑58 / 高68.8
不須車KS
GY6-01054-57.4
149cc
GY6 54 spacing
57.4mm casting cylinder,
with casting piston
Outer diameter: 59.8 mm
Cylinder height: 68.8 mm
Cut KS: x
豪邁 54中心距
57.4mm 鑄造汽缸
+鑄造活塞
外徑59.8 / 高68.8
不須車KS
GY6-01054-58.5
155cc
GY6 54 spacing
58.5mm casting cylinder,
with casting piston
Outer diameter: 60.4 mm
Cylinder height: 68.8 mm
Cut KS: x
豪邁 54中心距
58.5mm 鑄造汽缸
+鑄造活塞
外徑60.4 / 高68.8
不須車KS
GY6-01054-58.5c
GY6 54 spacing
58.5mm ceramic cylinder,
with casting  piston
Outer diameter: 60.4 mm
Cylinder height: 68.8mm
Cut KS: x
豪邁 54中心距
58.5mm 陶瓷汽缸
+鑄造活塞
外徑60.4 / 高68.8
不須車KS
GY6-01054-58.5h
GY6 54 spacing
58.5mm casting cylinder,
with casting dome piston
Outer diameter: 60.4 mm
Cylinder height: 68.8 mm
Cut KS: x
豪邁 54中心距
58.5mm 鑄造汽缸
+鑄造+高壓縮活塞
外徑60.4 / 高68.8
不須車KS
HOT
GY6-01054-61w
168cc
GY6 54 spacing
61mm casting cylinder,
with casting piston
Outer diameter: 62.7 mm
Cylinder height: 69.3 mm
Cut KS: x
Go for STD crank
豪邁 54中心距
61mm 鑄造汽缸
+鑄造活塞
外徑62.7 / 高69.3
不須車KS
配原廠曲軸
HOT
GY6-01054-61wf
GY6 54 spacing
61mm casting cylinder,
with forged piston
Outer diameter: 62.7 mm
Cylinder height: 69.3 mm
Cut KS: x
Go for STD crank
豪邁 54中心距
61mm 鑄造汽缸
+鍛造活塞
外徑62.7 / 高69.3
不須車KS
配原廠曲軸
GY6-01054-61
GY6 54 spacing
61mm casting cylinder,
with casting  piston
Outer diameter: 65 mm
Cylinder height: 69.3 mm
Cut KS: 65.5
豪邁 54中心距
61mm 鑄造汽缸
+鑄造活塞
外徑65 / 高69.3
須車KS 65.5 mm
GY6-01054-61f
GY6 54 spacing
61mm casting cylinder,
with forged (dome) piston
Outer diameter: 65 mm
Cylinder height: 69.3 mm
Cut KS: 65.5
豪邁 54中心距
61mm 鑄造汽缸
+鑄造(高壓縮)活塞
外徑65 / 高69.3
須車KS 65.5 mm
GY6-01054-61c
GY6 54 spacing
61mm ceramic cylinder,
with casting piston
Outer diameter: 65 mm
Cylinder height: 69.3mm
Cut KS: 65.5
豪邁 54中心距
61mm 陶瓷汽缸
+鑄造活塞
外徑65 / 高69.3
須車KS 65.5 mm
GY6-01054-61cf
GY6 54 spacing
61mm ceramic cylinder,
with forged (dome) piston
Outer diameter: 65 mm
Cylinder height: 69.3 mm
Cut KS: 65.5
豪邁 54中心距
61mm 陶瓷汽缸
+鑄造(高壓縮)活塞
外徑65 / 高69.3
須車KS 65.5 mm
GY6-01054-62
174cc
GY6 54 spacing
62mm casting cylinder,
with casting  piston
Outer diameter: 65 mm
Cylinder height: 69.3 mm
Cut KS: 65.5
豪邁 54中心距
62mm 鑄造汽缸
+鑄造活塞
外徑65 / 高69.3
須車KS 65.5 mm
GY6-01054-62f
GY6 54 spacing
62mm casting cylinder,
with forged piston
Outer diameter: 65 mm
Cylinder height: 69.3mm
Cut KS: 65.5
豪邁 54中心距
62mm 鑄造汽缸
+鍛造活塞
外徑65 / 高69.3
須車KS 65.5 mm
NEW
GY6-01054-62-75
GY6 54 spacing
62mm casting cylinder,
with casting  piston
Outer diameter: 65 mm
Cylinder height: 75.2 mm
Cut KS: 65.5
Go for 8.2 crank
豪邁 54中心距
62mm 鑄造汽缸
+鑄造活塞
外徑65 / 高75.2
須車KS 65.5 mm
配820條
NEW
GY6-01054-62f-75
GY6 54 spacing
62mm casting cylinder,
with forged piston
Outer diameter: 65 mm
Cylinder height: 75.2mm
Cut KS: 65.5
Go for 8.2 crank
豪邁 54中心距
62mm 鑄造汽缸
+鍛造活塞
外徑65 / 高75.2
須車KS 65.5 mm
配820條
GY6-01054-63
180cc
GY6 54 spacing
63mm casting cylinder,
with casting  piston
Outer diameter: 65.5 mm
Cylinder height: 69.3 mm
Cut KS: 66.0
豪邁 54中心距
63mm 鑄造汽缸
+鑄造活塞
外徑65.5 / 高69.3
須車KS 66 mm
GY6-01054-63h
GY6 54 spacing
63mm casting cylinder,
with casting dome piston
Outer diameter: 65.5 mm
Cylinder height: 69.3 mm
Cut KS: 66.0
豪邁 54中心距
63mm 鑄造汽缸
+鑄造+高壓縮活塞
外徑65.5 / 高69.3
須車KS 66 mm
GY6-01054-63f
GY6 54 spacing
63mm casting cylinder,
with forged piston
Outer diameter: 65.5 mm
Cylinder height: 69.3 mm
Cut KS: 66.0
豪邁 54中心距
63mm 鑄造汽缸
+鍛造活塞
外徑65.5 / 高69.3
須車KS 66 mm
GY6-01054-63fh
GY6 54 spacing
63mm casting cylinder,
with forged dome piston
Outer diameter: 65.5 mm
Cylinder height: 69.3 mm
Cut KS: 66.0
豪邁 54中心距
63mm 鑄造汽缸
+鍛造+高壓縮活塞
外徑65.5 / 高69.3
須車KS 66 mm
GY6-01054-63c
GY6 54 spacing
63mm ceramic cylinder,
with casting piston
Outer diameter: 65.5 mm
Cylinder height: 69.3 mm
Cut KS: 66.0
豪邁 54中心距
63mm 陶瓷汽缸
+鑄造活塞
外徑65.5 / 高69.3
須車KS 66 mm
GY6-01054-63ch
GY6 54 spacing
63mm ceramic cylinder,
with casting dome piston
Outer diameter: 65.5 mm
Cylinder height: 69.3 mm
Cut KS: 66.0
豪邁 54中心距
63mm 陶瓷汽缸
+鑄造+高壓縮活塞
外徑65.5 / 高69.3
須車KS 66 mm
GY6-01054-63cf
GY6 54 spacing
63mm ceramic cylinder,
with forged piston
Outer diameter: 65.5 mm
Cylinder height: 69.3 mm
Cut KS: 66.0
豪邁 54中心距
63mm 陶瓷汽缸
+鍛造活塞
外徑65.5 / 高69.3
須車KS 66 mm
GY6-01054-63cfh
GY6 54 spacing
63mm ceramic cylinder,
with forged dome piston
Outer diameter: 65.5 mm
Cylinder height: 69.3 mm
Cut KS: 66.0
豪邁 54中心距
63mm 陶瓷汽缸
+鍛造+高壓縮活塞
外徑65.5 / 高69.3
須車KS 66 mm
GY6-01054-63-75
180cc
GY6 54 spacing
63mm casting cylinder,
with casting piston
Outer diameter: 65.5 mm
Cylinder height: 75 mm
Cut KS: 66.0
Go for 8.2 crank
豪邁 54中心距
63mm 鑄造汽缸
+鑄造活塞
外徑65.5 / 高75
須車KS 66 mm
配820條
GY6-01054-63h-75
GY6 54 spacing
63mm casting cylinder,
with casting dome piston
Outer diameter: 65.5 mm
Cylinder height: 75 mm
Cut KS: 66.0
Go for 8.2 crank
豪邁 54中心距
63mm 鑄造汽缸
+鑄造+高壓縮活塞
外徑65.5 / 高75
須車KS 66 mm
配820條
GY6-01054-63c-75
GY6 54 spacing
63mm ceramic cylinder,
with casting piston
Outer diameter: 65.5 mm
Cylinder height: 75 mm
Cut KS: 66.0
Go for 8.2 crank
豪邁 54中心距
63mm 陶瓷汽缸
+鑄造活塞
外徑65.5 / 高75
須車KS 66 mm
配820條
GY6-01054-63f-75
GY6 54 spacing
63mm casting cylinder,
with forged (dome) piston
Outer diameter: 65.5 mm
Cylinder height: 75
Cut KS: 66.0
Go for 8.2 crank
豪邁 54中心距
63mm 鑄造汽缸
+鍛造(高壓縮)活塞
外徑65.5 / 高75
須車KS 66 mm
配820條
GY6-01054-63cf-75
GY6 54 spacing
63mm ceramic cylinder,
with forged (dome) piston
Outer diameter: 65.5 mm
Cylinder height: 75 mm
Cut KS: 66.0
Go for 8.2 crank
豪邁 54中心距
63mm陶瓷汽缸
+鍛造(高壓縮)活塞
外徑65.5 / 高75
須車KS 66 mm
配820條



Item number
Description
GY6-01057-61*
168cc
GY6 57 spacing
61mm casting cylinder,
with casting piston
Outer diameter: 66.5 mm
Cylinder height: 69.3
Cut KS: 67
豪邁 57中心距
63mm鑄造汽缸
+鑄造活塞
外徑66.5 / 高69.3
須車KS 67 mm
GY6-01057-61*f
GY6 57 spacing
61mm casting cylinder,
with forged piston
Outer diameter: 66.5 mm
Cylinder height: 69.3 mm
Cut KS: 67
豪邁 57中心距
63mm鑄造汽缸
+鍛造活塞
外徑66.5 / 高69.3
須車KS 67 mm
GY6-01057-63*
180cc
GY6 57 spacing
63mm casting cylinder,
with casting piston
Outer diameter: 66.5 mm
Cylinder height: 69.3 mm
Cut KS: 67.0
豪邁 57中心距
63mm鑄造汽缸
+鑄造活塞
外徑66.5 / 高69.3
須車KS 67 mm
GY6-01057-63*h
GY6 57 spacing
63mm casting cylinder,
with casting dome piston
Outer diameter: 66.5 mm
Cylinder height: 69.3 mm
Cut KS: 67.0
豪邁 57中心距
63mm鑄造汽缸
+鑄造+高壓縮活塞
外徑66.5/ 高69.3
須車KS 67 mm
GY6-01057-63*f
GY6 57 spacing
63mm casting cylinder,
with forged piston
Outer diameter: 66.5 mm
Cylinder height: 69.3 mm
Cut KS: 67.0
豪邁 57中心距
63mm鑄造汽缸
+鍛造活塞
外徑66.5 / 高69.3
須車KS 67 mm
GY6-01057-63*fh
GY6 57 spacing
63mm casting cylinder,
with forged dome piston
Outer diameter: 66.5 mm
Cylinder height: 69.3 mm
Cut KS: 67.0
豪邁 57中心距
63mm鑄造汽缸
+鍛造+高壓縮活塞
外徑66.5 / 高69.3
須車KS 67 mm
GY6-01057-63.5*
183cc
GY6 57 spacing
63.5mm casting cylinder,
with casting piston
Outer diameter: 66.5 mm
Cylinder height: 69.3 mm
Cut KS: 67.0
豪邁 57中心距
63.5 mm鑄造汽缸
+鑄造活塞
外徑66.5 / 高69.3
須車KS 67 mm
GY6-01057-63.5*f
GY6 57 spacing
63.5mm casting cylinder,
with forged piston
Outer diameter: 66.5 mm
Cylinder height: 69.3 mm
Cut KS: 67.0
豪邁 57中心距
63.5 mm鑄造汽缸
+鍛造活塞
外徑66.5 / 高69.3
須車KS 67 mm
GY6-01057-65*
191cc
GY6 57 spacing
65mm casting cylinder,
with casting piston
Outer diameter: 69.5 mm
Cylinder height: 69.3 mm
Cut KS: 70.0
豪邁 57中心距
65mm鑄造汽缸
+鑄造活塞
外徑69.5 / 高69.3
須車KS 70 mm
GY6-01057-65*c
GY6 57 spacing
65mm ceramic cylinder,
with casting piston
Outer diameter: 69.5 mm
Cylinder height: 69.3 mm
Cut KS: 70.0
豪邁 57中心距
65mm陶瓷汽缸
+鑄造活塞
外徑69.5 / 高69.3
須車KS 70 mm
GY6-01057-65*cf
GY6 57 spacing
65mm ceramic cylinder,
with forged piston
Outer diameter: 69.5 mm
Cylinder height: 69.3 mm
Cut KS: 70.0
豪邁 57中心距
65mm陶瓷汽缸
+鍛造活塞
外徑69.5 / 高69.3
須車KS 70 mm
GY6-01057-65*cfh
GY6 57 spacing
65mm ceramic cylinder,
with forged dome piston
Outer diameter: 69.5 mm
Cylinder height: 69.3 mm
Cut KS: 70.0
豪邁 57中心距
65mm陶瓷汽缸
+鍛造+高壓縮活塞
外徑69.5 / 高69.3
須車KS 70 mm
GY6-01057-65*c-75
GY6 57 spacing
65mm ceramic cylinder,
with casting piston
Outer diameter: 69.5 mm
Cylinder height: 75.2 mm
Cut KS: 70.0
Go for 8.2 crank
豪邁 57中心距
65mm陶瓷汽缸
+鑄造活塞
外徑69.5 / 高75.2
須車KS 70 mm
配820條
GY6-01057-66*
197cc
GY6 57 spacing
66mm casting cylinder,
with casting piston
Outer diameter: 69.5 mm
Cylinder height: 69.3 mm
Cut KS: 70.0
豪邁 57中心距
66mm鑄造汽缸
+鑄造活塞
外徑69.5 / 高69.3
須車KS 70 mm
GY6-01057-67*c
203cc
GY6 57 spacing
67mm ceramic cylinder,
with casting piston
Outer diameter: 69.5 mm
Cylinder height: 69.3
Cut KS: 70.0
Go for 3.5 crank
豪邁 57中心距
67mm陶瓷汽缸
+鑄造活塞
外徑69.5 / 高69.3
須車KS 70 mm
配350條
GY6-01057-67*cf
GY6 57 spacing
67mm ceramic cylinder,
with forged piston
Outer diameter: 69.5 mm
Cylinder height: 69.3
Cut KS: 70.0
Go for 3.5 crank
豪邁 57中心距
67mm陶瓷汽缸
+鍛造活塞
外徑69.5 / 高69.3
須車KS 70 mm
配350條
GY6-01057-67*cfh
GY6 57 spacing
67mm ceramic cylinder,
with forged dome piston
Outer diameter: 69.5 mm
Cylinder height: 69.3
Cut KS: 70.0
Go for 3.5 crank
豪邁 57中心距
67mm陶瓷汽缸
+鍛造+高壓縮活塞
外徑69.5 / 高69.3
須車KS 70 mm
配350條
GY6-01057-67*c-75
GY6 57 spacing
67mm ceramic cylinder,
with casting piston
Outer diameter: 69.5 mm
Cylinder height: 75.2 mm
Cut KS: 70.0
Go for 8.2 crank
豪邁 57中心距
67mm陶瓷汽缸
+鑄造活塞
外徑69.5 / 高75.2
須車KS 70 mm
配820條
HOT
GY6-01057-67*cf-75
GY6 57 spacing
67mm ceramic cylinder,
with forged piston
Outer diameter: 69.5 mm
Cylinder height: 75.2 mm
Cut KS: 70.0
Go for 8.2 crank
豪邁 57中心距
67mm陶瓷汽缸
+鍛造活塞
外徑69.5 / 高75.2
須車KS 70 mm
配820條


GY6 2V Oversize Cylinder Head
GY6 Big Valve Head is a great match for 180cc big bore GY6 engine. It's recommend to upgrade the GY6 cylinder head when doing a big bore cylinder kit upgrade. This Taida Big Valve Head will fit most GY6 with 57mm head bolt spacing. This version of the Taida GY6 Big Valve Head has also been given a port job on the intake and exhaust ports, which increases flow and adds power to an already powerful head!


GY6 67mm ceramics cylinder high 69.3mm = 60.8mm stroke and 61.4mm stroke use
GY6 67mm ceramics cylinder high 75.2mm = 64.4mm stroke and 66mm stroke use


Item number
Description
GY6-02054-28/23-1
GY6 oversize 2V cylinder head 28/23
54mm spacing
Go for 58.5mm~63mm cylinder, chain 90
豪邁加大汽門28/23
適合58.5汽缸至63汽缸
54中心距 / 90目內鍊
GY6-02054-28/23-2
GY6 oversize 2V cylinder head 28/23
54mm spacing
Go for 58.5mm~61mm cylinder, chain 92
Big intake and exhaust hole.
豪邁加大汽門28/23
適合58.5汽缸至61汽缸
54中心距 / 92目內鍊
進排加大
GY6-02054-30.5/26.5
GY6 oversize 2V cylinder head 30.5/26.5
54mm spacing
Go for 63mm cylinder
豪邁加大汽門30.5/26.5
適合63汽缸
54中心距
GY6-02057-28/23*
GY6 oversize 2V cylinder head 28/23
57mm spacing
Go for 58.5mm~63mm cylinder, chain 90
豪邁加大汽門28/23
適合58.5汽缸至63汽缸
57中心距 / 90目內鍊
GY6-02057-30.5/26.5*
GY6 oversize 2V cylinder head 30.5/26.5
57mm spacing
Go for 63mm~67mm cylinder
豪邁加大汽門30.5/26.5
適合63汽缸至67汽缸
57中心距



Cylinder
汽缸
Cylinder head
加大汽門
Crankshaft
曲軸
Studs
螺絲柱*4
Chain
內鏈
58.5-63
GY6 2V 28/23
54 spacing
3500
187/195
90
58.5-61
GY6 2V 28/23
54 spacing
Big intake and exhaust hole.
3500
195/203
92
63
GY6 2V 30.5/26.5
54 spacing
3500
195/203
92
6600~8200
200/208
94
58.5-63
GY6 2V 28/23
57 spacing
STD~3500
187/195
90
63 -67
GY6 2V 30.5/26.5
57 spacing
3500
195/203
92
6600~8200
200/208
94



GY6 Camshaft cover

 Cover set is included O-ring.

Model  No
Description
GY6-cov-2V
GY6 cam cover+ gasket ( non EGR )
Normal
豪邁凸輪軸蓋+油圈2V
(正常版)


Model  No
Description
GY6-cov-2V-GY6
GY6 camshaft cover 2V
TD& GY6 logo, sliver
豪邁凸輪軸蓋 2V
TD&GY6/銀

GY6-cov-2V-GY6-B
GY6 camshaft cover 2V
TD& GY6 logo, black
豪邁凸輪軸蓋 2V
TD&GY6/黑

GY6-cov-2V-232
GY6 camshaft cover 2V
TD& 232 logo, sliver
豪邁凸輪軸蓋 2V
TD&232/銀

GY6-cov-2V-232-B
GY6 camshaft cover 2V
TD& 232 logo, black
豪邁凸輪軸蓋 2V
TD&232/黑

GY6-cov-4V-GY6
GY6 camshaft cover 4V
TD& GY6 logo, sliver
豪邁凸輪軸蓋 4V
TD&GY6/銀

GY6-cov-4V-GY6-B
GY6 camshaft cover 4V
TD& GY6 logo, black
豪邁凸輪軸蓋 4V
TD&GY6/黑

GY6-cov-4V-232
GY6 camshaft cover 4V
TD& 232 logo, sliver
豪邁凸輪軸蓋 4V
TD&232/銀

GY6-cov-4V-232-B
GY6 camshaft cover 4V
TD& 232 logo, black
豪邁凸輪軸蓋 4V
TD&232/黑




GY6 Valve Set

Model  No
Description
GY6-2V-28/23
GY6 28/23 valve set
豪邁汽門(材料)28/23
GY6-2V-30.5/26.5
GY6 30.5/26.5 valve set
豪邁汽門(材料)30.5/26.5
GY6-4V-22/21
GY6 22/21 valve set
豪邁汽門(材料)22/21
GY6-4V-23/22
GY6 23/22 valve set
豪邁汽門(材料)23/22



Model  No
Description
GY6-cov-4V
GY6 cam cover
normal
Do not have GY6 logo on it.
豪邁凸輪軸蓋
(正常版)




GY6 4V Oversize Cylinder Head
This kit included head, camshaft, arms, cam cover, screw, chain and studs (like picture).
Please must let me know what stroke of crank you will go for.

Model  No
Description
GY6-02054-22/21-4V
GY6 oversize cylinder Head 22/21 4V set 54mm spacing
Go for 58.5-62 cylinder
豪邁4V加大汽門組22/21
54中心距
此產品包含缸頭+凸輪軸+搖臂+凸輪軸蓋+螺絲+內鏈+螺絲柱
燃燒室小
GY6-02054-23/22-4V
GY6 oversize cylinder Head 23/22 4V set 54mm spacing
Go for 63 cylinder
豪邁4V加大汽門組23/22
54中心距
此產品包含缸頭+凸輪軸+搖臂+凸輪軸蓋+螺絲+內鏈+螺絲柱
燃燒室大
GY6-02057-22/21*-4V-S
GY6 oversize cylinder Head 22/21 4V set 57mm spacing
Go for 61-62 cylinder
Small chamber
豪邁4V加大汽門組22/21
57中心距
此產品包含缸頭+凸輪軸+搖臂+凸輪軸蓋+螺絲+內鏈+螺絲柱
燃燒室小
GY6-02057-23/22*-4V-M
GY6 oversize cylinder Head 23/22 4V set 57mm spacing
Go for 63-63.5 cylinder
Middle chamber
豪邁4V加大汽門組23/22
57中心距
此產品包含缸頭+凸輪軸+搖臂+凸輪軸蓋+螺絲+內鏈+螺絲柱
燃燒室中
GY6-02057-23/22*-4V-L
GY6 oversize cylinder Head 23/22 4V set 57mm spacing
Go for 65-67 cylinder
Big chamber
豪邁4V加大汽門組23/22
57中心距
此產品包含缸頭+凸輪軸+搖臂+凸輪軸蓋+螺絲+內鏈+螺絲柱
燃燒室大


Cylinder
汽缸
Cylinder head
加大汽門
Crankshaft
曲軸
Studs
螺絲柱*4
Chain
內鏈
58.5-62
GY6 4V 22/21
54 spacing
3500
208/218
94
63
GY6 4V 23/22
54 spacing
3500
208/218
94
8200
218/225
96
61-62
small chamber
GY6 4V 22/21
57 spacing
3500
208/218
94
63-63.5
Middle chamber
GY6 4V 23/22
57 spacing
3500
208/218
94
8200
218/225
96
65-67
Big chamber
GY6 4V 23/22
57 spacing
3500
208/218
94
8200
218/225
96




Model  No
Description
GY6-screw-4V
Cylinder screw (4/set)
豪邁 4V汽缸螺絲*4

GY6-rubber-4V
Rubber gasket (1/set)
豪邁 4V O橡膠墊片*1

GY6-bolt-4V
Muffler gasket & bolts
豪邁 4V排氣管墊片+螺絲包

GY6-cam-4V
GY6 4V Camshaft
豪邁 4V 凸輪軸

GY6-arm-4V-54
GY6 4V Rocker arm set
54 spacing
豪邁 4V搖臂座組54

GY6-arm-4V-57
GY6 4V Rocker arm set
57 spacing
豪邁 4V搖臂座組57


Description 4V
Lift
GY6 4V camshaft
IN 23.5/30
EX 23.5/29.8
6.5
6.3



GY6 Guide Chain & Tension lever chain

Model  No
Description
GY6-CGA
GY6 4V guide chain A
14610-KUDU-C0B
4V鍊條導件-排骨(下)
GY6-CGC
GY6 4V tension lever chain C
14510-KUDU-C00
4V內鏈條拉力桿-排骨(上)
GY6-CGB
GY6 2V guide chain B
14610-GFY6-901
2V鍊條導件-排骨(下)
GY6-CGD
GY6 2V tension lever chain D
14510-GFY6-901
2V內鏈條拉力桿-排骨(上)

GY6 Chain & Stud
Model  No
Description
GY6-CHAIN-90
CHAIN-90 (STD)
90目內鍊(原廠)
GY6-CHAIN-92
CHAIN-92
92目內鍊
GY6-CHAIN-94
CHAIN-94
94目內鍊
GY6-CHAIN-96
CHAIN-96
96目內鍊
GY6- studs-187/195
Bolt stud*4 -187/195 (STD)
螺絲柱187/195(原廠)
GY6- studs-195/203
Bolt stud*4 -195/203
螺絲柱195-203
GY6- studs-200/208
Bolt stud*4 -200/208
螺絲柱200/208
GY6- studs-208/218-4V
Bolt stud*4 -208/218
螺絲柱208/218
GY6- studs-218/225-4V
Bolt stud*4 -218/225
螺絲柱218/225

GY6 Upgraded Camshaft
We can offer you different kinds of function camshafts. If you go racing you can choose Power at beginning and middle type. T300 is the cam we recommend you no matter what size of cylinder you have, it fit all and have good efficiency.


Model  No
Description
GY6-CAM
GY6 camshaft
( 125cc and 150cc use )
豪邁凸輪軸
(125cc,150cc適用)
T-ONE
T-ONE camshaft (upgraded)
Power at the last
T-ONE凸輪軸-中尾
T-100
T-100 camshaft (upgraded)
Power at beginning and middle
T-100凸輪軸-起中
T-300
T-300 camshaft (upgraded)
Power at the last, fit 58.5~67mm
T-300凸輪軸-中尾
適合58.5至67汽缸


Description
Fit cylinder size
Fit oversize cylinder head
power
Lift
T100 camshaft
58.5~67
30.5/26.5 or 28/23
Power
at beginning
and middle
IN 19.8/26.2
EX 19.8/26.1
6.4
6.3
T300 camshaft
58.5~67
30.5/26.5 or 28/23
Power at last
IN 19.4/25.7
EX 19.2/25.45
6.3
6.25
T-ONE camshaft
58.5~67
30.5/26.5 or 28/23
Power at last
IN 19.4/26
EX 19.4/25.8
6.6
6.4


GY6 Rocker Arm set
Model  No
Description
GY6-ROC-57-2V
GY6  Rocker set
57mm spacing
豪邁2V搖臂座組
(搖臂+搖臂座+搖臂肖)
57中心距
GY6-ROC-54-2V
GY6  Rocker set
54mm spacing
豪邁2V搖臂座組
(搖臂+搖臂座+搖臂肖)
54中心距



GY6 Extended Stroke Crankshaft

GY6 bearing are both 56mm.
 If your GY6 engine case is 54 spacing, you need to make sure the bearing size of crankshaft.
54 spacing might be KDU type, 56mm and 62mm.

Model  No
Description
GY6-030
GY6 STD crankshaft, strengthening
( 57.8 mm stroke )
豪邁原廠強化曲軸
GY6-030350
GY6 3500 microns stroke extended crankshaft ( 61.3mm stroke )
豪邁350條曲軸
GY6-030660-G
GY6 6600 microns stroke extended crankshaft ( 64.4mm stroke )
★Included chain and stud bolts★
Include 6mm aluminum gasket
豪邁660條曲軸
含內鍊及螺絲柱
含6mm鋁墊片
GY6-030660
GY6 6600 microns stroke extended crankshaft ( 64.4mm stroke )
★Included chain and stud bolts★
Don’t include 6mm aluminum gasket
豪邁660條曲軸
含內鍊及螺絲柱
GY6-030820-G
GY6 8200 microns stroke extended crankshaft
( 66 mm stroke )
★Included chain and stud bolts★
Include 6mm aluminum gasket
豪邁820條曲軸
含內鍊及螺絲柱
含6mm鋁墊片
GY6-030820
GY6 8200 microns stroke extended crankshaft
( 66 mm stroke )
★Included chain and stud bolts★
Don’t include 6mm aluminum gasket
豪邁820條曲軸
含內鍊及螺絲柱
GY6-030820-non
GY6 8200 microns stroke extended crankshaft
( 66 mm stroke )
★Don not included chain and studs★
Don’t include 6mm aluminum gasket
For 4V head only
豪邁820條曲軸
無內鍊-螺絲柱-鋁片
配4V缸頭



GY6 Water Cooled Cylinder


Model  No
Description
GY6-06054-61
GY6 54 spacing water cooled
61 mm casting cylinder
with casting piston
Outer diameter: 65mm
Cylinder height: 69.3mm
Cut KS: 65.5mm
豪邁 54中心距
61mm 水冷鑄造汽缸
+鑄造活塞
外徑65
高69.3
車KS 65.5
GY6-06054-62
GY6 54 spacing water cooled
62 mm casting cylinder
with casting piston
Outer diameter: 65mm
Cylinder height: 69.3mm
Cut KS: 65.5mm
豪邁 54中心距
62mm 水冷鑄造汽缸
+鑄造活塞
外徑65
高69.3
車KS 65.5
GY6-06054-62f
GY6 54 spacing water cooled
62mm casting cylinder
with forged piston
Outer diameter: 65mm
Cylinder height: 69.3mm
Cut KS: 65.5mm
豪邁 54中心距
62mm 水冷鑄造汽缸
+鍛造活塞
外徑65
高69.3
車KS 65.5
GY6-06054-63
GY6 54mm spacing water cooled
63mm casting cylinder
with casting piston
with 6mm aluminum gasket
(go for 6.2 or 8.2 crankshaft)
Outer diameter: 65.5mm
Cylinder height: 69.3mm(+6mm=75.3mm)
Cut KS: 66mm
豪邁 54中心距
63mm 水冷鑄造汽缸
+鑄造活塞
外徑65.5
高69.3
車KS 66
GY6-06057-63*c-75
GY6 57mm spacing  water cooled
63mm ceramic cylinder
with casting piston
Outer diameter: 69.5mm
Cylinder height: 75.2mm
Go for 6.6 and 8.2 crankshaft, don’t need to add aluminum gasket
Cut KS: 67mm
豪邁 57中心距
63mm 水冷陶瓷汽缸
+鑄造活塞
外徑69.5
高75.2
車KS 67
GY6-06057-67*c-75
GY6 57mm spacing water cooled
67mm ceramic cylinder
with casting piston
Outer diameter: 69.5mm
Cylinder height: 75.2mm
Go for 6.6 and 8.2 crankshaft, don’t need to add aluminum gasket
Cut KS: 70mm
豪邁 57中心距
67mm 水冷陶瓷汽缸
+鑄造活塞
外徑69.5
高75.2
車KS 70
GY6-06057-67*cf-75
GY6 57mm spacing water cooled
67mm ceramic cylinder
with forged piston
Outer diameter: 69.5mm
Cylinder height: 75.2mm
Go for 6.6 and 8.2 crankshaft, don’t need to add aluminum gasket
Cut KS: 70mm
豪邁 57中心距
67mm 水冷汽陶瓷缸
+鍛造活塞
外徑69.5
高 75.2
車KS 70



GY6 Radiator Kit


Our radiators made of copper, more lightly and easy radiating.
Pump now have a coat to prevent dust.
And hose, from black to blue, thicker and no easy get damage from the sun.

Model  No
Description
RAD-28*13
Radiator ( new product)+cap
散熱水箱+接頭
TD-CAPI-Italy
Filler cap -Made in Italy.
接頭
TD-CAPI-oran
Filler cap -Orange
接頭
TD-12P
12V water pump  ( 8 liters/minute )
12V水幫浦
TD-FT
Fan + Thermostat
Thermostat will start the fan when the temperature up to about + - 80cc. (75~85cc)
風扇+感應器
TD-HSB
water hose-blue
Water hose 120cm*2=240cm
水管+縮帶


GY6 Short Engine case
Cut KS open to 70mm can go with 67mm cylinder
Open to 67mm can go with 63mm cylinder
STD 65mm (without being cut) can go with 61mm cylinder
Model  No
Description
GY6-KS-S
GY6 short case set
57mm spacing
Include gasket for crankcase
豪邁短KS組(57中心距)


Short case
54 spacing called A
Used on ATV
10 inch wheels
57 spacing called B
Long case
54 spacing called A
Used on Scooter
12 or 13 inch wheels



GY6 Long Engine case

Our long cases already open to 70mm. You don’t need to modify it when go with upgraded matching.
It can go for 61mm to biggest 67mm cylinder. And the long case kit is included crankcase gasket.
Model  No
Description
GY6-KS-L
GY6 long case set
57mm spacing
A+B+C+D (4 pieces)
Case open to 70mm
Include gasket for crankcase
豪邁長KS組(57中心距)
52*26*18 CM / 6.5 KG
A+B+C+D (4片)
含KS墊片
NEW
GY6-KS-LB
GY6 long case set
57mm spacing
BLACK KS
A+B+C+D (4 pieces)
Case open to 70mm
Include gasket for crankcase
豪邁長KS組(57中心距)
黑色
52*26*18 CM / 6.5 KG
A+B+C+D (4片)
含KS墊片





Model  No
Description
GY6-KS-L-A
(GY-RC-57)
GY6 Oil case
Right case
57 spacing
豪邁油冷KS
(適用57油冷)
GY6-KS-L-B
(GY6-BC)
GY6 Boards case
 (Taida case is straight kind)
豪邁電盤KS
GY6-KS-L-C
GY6 crank case set L
TAIDA LOGO ON IT.
57 spacing
豪邁最大片KS (LOGO)
GY6-KS-L-D
GY6 cover mission
豪邁變速箱蓋
GY6-KS-LB-A
GY6 Oil case-BLACK
Right case
57 spacing
豪邁油冷KS-黑
(適用57油冷)
GY6-KS-LB-B
GY6 Boards case-BLACK
 (Taida case is straight kind)
豪邁電盤KS-黑
GY6-KS-LB-C
GY6 crank case set L-BLACK
TAIDA LOGO ON IT.
57 spacing
豪邁最大片KS (LOGO) -黑
GY6-KS-LB-D
GY6 cover mission-BLACK
豪邁變速箱蓋-黑
GY6-gas-crank
GY6 gasket set ( for crankcase )
For the straight type case
Fit TAIDA KS
豪邁曲軸墊片組




GY6 Right & Left Engine case


Model  No
Description
GY6-BC
GY6 Boards case
 (Taida case is straight kind)
豪邁電盤KS




Model  No
Description
GY6-RC-54
GY6 Oil case
Right case
54 spacing
豪邁油冷KS(適用54油冷)
GY6-RC-57
GY6 Oil case
Right case
57 spacing
豪邁油冷KS(適用57油冷)



GY6 Oil Cooling kit

Oil hose 100cm*2=200cm

GY6-050-54
GY6 oil cooler set
Oil KS, oil cooing, oil hose.
(54mm spacing)
豪邁油冷組(54中心距)
含油冷排、油管+接頭、油冷KS
GY6-050-57
GY6 oil cooler set
Oil KS, oil cooing, oil hose.
(57mm spacing)
豪邁油冷組(57中心距)
含油冷排、油管+接頭、油冷KS




Model  No
Description
GY6-050-NOKS
No case set
Oil cooing, oil hose.
(If you had TD KS already, you don’t need to buy KS. )
豪邁油冷組
含油冷排、油管+接頭
無KS
GY6-SCREW-O
GY6 Screw set
( for oil cooler case use, 2/set
one Red and one blue)
豪邁油冷接頭
(2支一組 1紅+1藍)


GY6 Piston & Ring


Model  No
Description
GY6-pis57.4
GY6 piston set 57.4mm
豪邁57.4活塞環組
GY6-pis58.5
GY6 piston set 58.5mm
豪邁58.5活塞環組
GY6-pis58.5-h
GY6 piston set 58.5mm
Dome (High Compression)
豪邁58.5活塞環組
(高壓縮-凸頂)
GY6-pis58.5-fh
GY6 piston set 58.5mm forging
Dome (High Compression)
豪邁58.5鍛造活塞環組
(高壓縮-凸頂)
GY6-pis61
GY6 piston set 61mm
豪邁61活塞環組
GY6-pis61-f
GY6 piston set 61mm forging
豪邁61鍛造活塞環組
GY6-pis62
GY6 piston set 62mm
豪邁62活塞環組
GY6-pis62-f
GY6 piston set 62mm forging
豪邁62鍛造活塞環組
GY6-pis63
GY6 piston set 63mm
豪邁63活塞環組
GY6-pis63-f
GY6 piston set 63mm forging
豪邁63鍛造活塞環組
GY6-pis63.5
GY6 piston set 63.5mm
豪邁63.5活塞環組
GY6-pis63.5-f
GY6 piston set 63.5mm forging
豪邁63.5鍛造活塞環組
GY6-pis65
GY6 piston set 65mm
豪邁65活塞環組
GY6-pis65f
GY6 piston set 65mm forging
豪邁65鍛造活塞環組
GY6-pis66
GY6 piston set 66mm
豪邁66活塞環組
GY6-pis67
GY6 piston set 67mm
豪邁67活塞環組
GY6-pis67-f
GY6 piston set 67mm forging
豪邁67鍛造活塞環組
If rings go for ceramic cylinder, we will change the 1st ring. (Must notify us)



Model  No
Description
GY6-ring57.4
GY6 piston ring 57.4mm
1.0/1.0/2.0
豪邁58.5活塞環
GY6-ring58.5-0.8
GY6 piston ring 58.5mm
0.8/0.8/2.0
豪邁58.5活塞環
GY6-ring58.5-1.0
GY6 piston ring 58.5mm
1.0/1.0/2.0
豪邁58.5活塞環
GY6-ring59
GY6 piston ring 59mm
1.0/1.0/2.0
豪邁59活塞環
GY6-ring61
GY6 piston ring 61mm
1.0/1.0/2.0
豪邁61活塞環
GY6-ring62
GY6 piston ring 62mm
1.0/1.0/2.0
豪邁62活塞環
GY6-ring63-0.8
GY6 piston ring 63mm
0.8/0.8/2.0
豪邁63活塞環

GY6-ring63-1.0
GY6 piston ring 63mm
1.0/1.0/2.0
豪邁63活塞環
GY6-ring63.5-1.5
GY6 piston ring 63.5mm
0.8/0.8/1.5
豪邁63.5活塞環
GY6-ring63.5-2.0
GY6 piston ring 63.5mm
0.8/0.8/2.0
豪邁63.5活塞環
GY6-ring63.5-1.0
GY6 piston ring 63.5mm
1.0/1.0/2.0
豪邁63.5活塞環
GY6-ring65
GY6 piston ring 65mm
0.8/0.8/1.5
豪邁65活塞環
GY6-ring66
GY6 piston ring 66mm
0.8/0.8/2.0
豪邁66活塞環
GY6-ring67
GY6 piston ring 67mm
0.8/0.8/2.0
豪邁67活塞環




58.5~62mm for 54spacing 63mm for 54 or 57spacing 63~67mm for 57spacing
Included one steel gasket, 0.5, 0.8 paper gaskets, G-ring and chain adjustment gasket.
鋼墊片、紙墊片0.5+0.8、G環、內鍊調整器墊片

Model  No
Description
GY6-gas58.5-54
GY6 cylinder gaskets set 58.5mm
54mm spacing
豪邁58.5汽缸墊片組
0.5+0.8+58.5
GY6-gas61-54
GY6 cylinder gaskets set 61mm
54 mm spacing
豪邁61汽缸墊片組
0.5+0.8+61
GY6-gas61-57
GY6 cylinder gaskets set 61mm
57 mm spacing
豪邁61汽缸墊片組
0.5+0.8+61
GY6-gas62-54
GY6 cylinder gaskets set 62mm
54 mm spacing
豪邁62汽缸墊片組
0.5+0.8+62
GY6-gas62-57
GY6 cylinder gaskets set 62mm
57 mm spacing
豪邁62汽缸墊片組
0.5+0.8+62
GY6-gas63-54
GY6 cylinder gaskets set 63mm
54 mm spacing
豪邁63汽缸墊片組
0.5+0.8+63
GY6-gas63-57
GY6 cylinder gaskets set 63mm
57 mm spacing
豪邁63汽缸墊片組
0.5+0.8+63
GY6-gas65-57
GY6 cylinder gaskets set 65mm
57 mm spacing
豪邁65汽缸墊片組
0.5+0.8+65
GY6-gas66-57
GY6 cylinder gaskets set 66mm
57 mm spacing
豪邁66汽缸墊片組
0.5+0.8+66
GY6-gas67-57
GY6 cylinder gaskets set 67mm
57 mm spacing
豪邁67汽缸墊片組
0.5+0.8+67




























Taida Motor Part Co,.
No.358, Han Hsi St., East Dist., Taichung
40153, Taiwan
Tel: 886-4-22136599
http://www.taiwantrade.com.tw/EP/tdmotor
http://www.td-motor.com.tw/zh/home.html
E-mail: td87185162@gmail.com
E-mail: td87185162@yahoo.com.tw
台達搪缸廠
台中市東區旱溪街358號
電話:04-22136599



位置： 401台灣台中市東區十甲里

這個網誌中的熱門文章

迪奧組裝知識（ Dio Install knowledg，Dio をインストール知識）

圖片
DIO 50=39x41.4 (H) 半 DIO 90=50x49.6 (F) 全 12pin Horizontal, af34.af35 (No offer) Vertical (L shape) Honda af16.af18 DIO50 半組 half kit 曲軸 Crank 汽缸 + 蓋 Cylinder + head 排氣數 c.c. 39x 41.4 Original 41.4 DIO50-030 39 49 cc 50(H:68.4) 81 cc 43.4(2000) DIO65-030200 39 51 cc 45-aluminum 69 cc 50(H:68.4) 85 cc DIO90 全組 full kit 曲軸 Crank 汽缸 + 蓋 Cylinder + head 排氣數 c.c. 50 x 49.6 PH19-CH75 PH21-CH77 or 78 51.6(2000) DIO90-030200 50(H:75) (PH:19) 101 cc 52(PH:19) 109 cc 52(PH:21) 109 cc 54(H:75) 118 cc 54(H:78/PH:21) 118 cc 55 122 cc 56 127 cc 52.6(3000) DIO90-030300 50(H:75) 103 cc
閱讀完整內容

噴射車系 小改直上引擎套件組 (原廠尺寸高壓縮比設定汽缸, 小改 加大高壓縮比設定汽缸)

圖片
噴射小改 直上引擎套件紅 不需外加電腦 免換噴油嘴 ( 視車況而定 ) 及節氣門 原廠系統即可對應 ! 凸頂活塞高壓縮比設定 　 適用車種 　 其他車種須洽詢 　 YAMAHA 　勁戰 3/4 代 ,110/115,S-MAX, BWS125 　 KYMCO 　 Racing 全系列 , Many, VJR100/110, G5, G6 　 SYM 　 Fighter, Jet Power, IRX115, Z1 Fuel injection small upgrade cylinder kit doesn't need to machine engine case. -NO need ECU, No change jet and throttle -Just go with original (STD) parts -Customized dome, high compression piston 　 YAMAHA 　 Cygnus 125,110/115,S-MAX, BWS125 　 KYMCO 　 Racing, Many, VJR100/110, G5, G6 　 SYM 　 Fighter, Jet Power, IRX115, Z1 就算只是原廠尺寸的汽缸, 裝了台達的凸頂活塞, 機車會明顯有力加速快~ 凸頂約比平頂凸約1mm~2mm, ( 不能做太凸, 太凸也會有很難發動的問題以下車訊網也有解釋原因), 有些人會問, 那它旳缺點呢? 在台達凸頂活塞+有改裝經驗技術好的店家, 缺點不能說完全不見了, 但缺點已降低很多~ 壓縮比= ( 排氣量CC數燃燒室容積)／燃燒室容積 一般可以從車主使用手冊上的說明，得知該車輛的引擎壓縮比，以國內一般現有機車的引擎壓縮比大部分以92及95無鉛汽油為主．但少數特殊車種的壓縮比標示會高於10：1以上．此時將建議使用98無鉛汽油． 壓縮比9 以下建議使用92無鉛汽油 壓縮比9~10之間建議
閱讀完整內容

燃燒室容積的計算

須設定壓縮比,才能求算出燃燒室容積,如何設黃金壓縮比呢? 以改大cc數,應以12~12.5,最好不要超過12.5, 這是大家所公 認有效果, 不會有大問題的壓縮比~ 以豪邁最大改裝cc 數是67mm汽缸配上820條曲軸,這樣是232cc 那如果設定壓縮比是12.2那燃燒室容積是多少呢? 設燃燒室容積為X,代入 232+X/X=12.2 232+X=12.2X 232=11.2X X=20.7=燃燒室容積 可以算出來,但太慢了, 如果改用Excel就快多了~只要點入google的連結再key入黃色框內數字,即可求算出燃燒室容積~ https://docs.google.com/spreadsheets/d/1PDoMjsSVb0AXwWqJpJdF1VNpBexghmVCrfpE7v0Q5LA/edit?usp=sharing Taida Motor Part Co,. No.358, Han Hsi St., East Dist., Taichung 40153, Taiwan Tel: 886-4-22136599 http://www.taiwantrade.com.tw/EP/tdmotor http://www.td-motor.com.tw/zh/home.html E-mail: td87185162@gmail.com E-mail: td87185162@yahoo.com.tw 台達搪缸廠 台中市東區旱溪街358號 電話:04-22136599
閱讀完整內容
